Alcatel Omnistack 4024 Switch

Alcatel Omnistack 4024 Managed Ethernet Switch

Images

Thumbnails are clickable

Outside

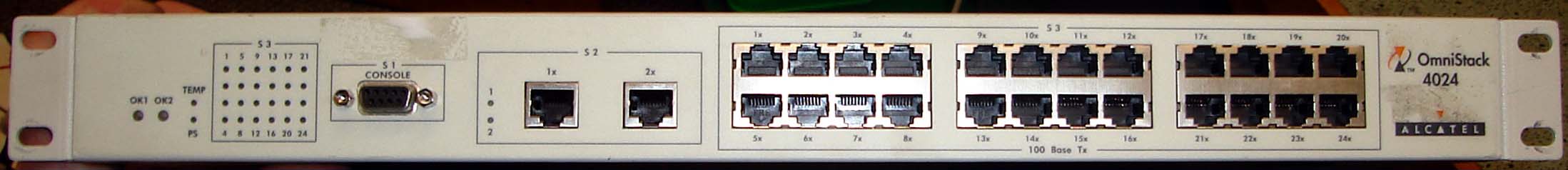

Front of Alcatel Omnistack 4024

Inside

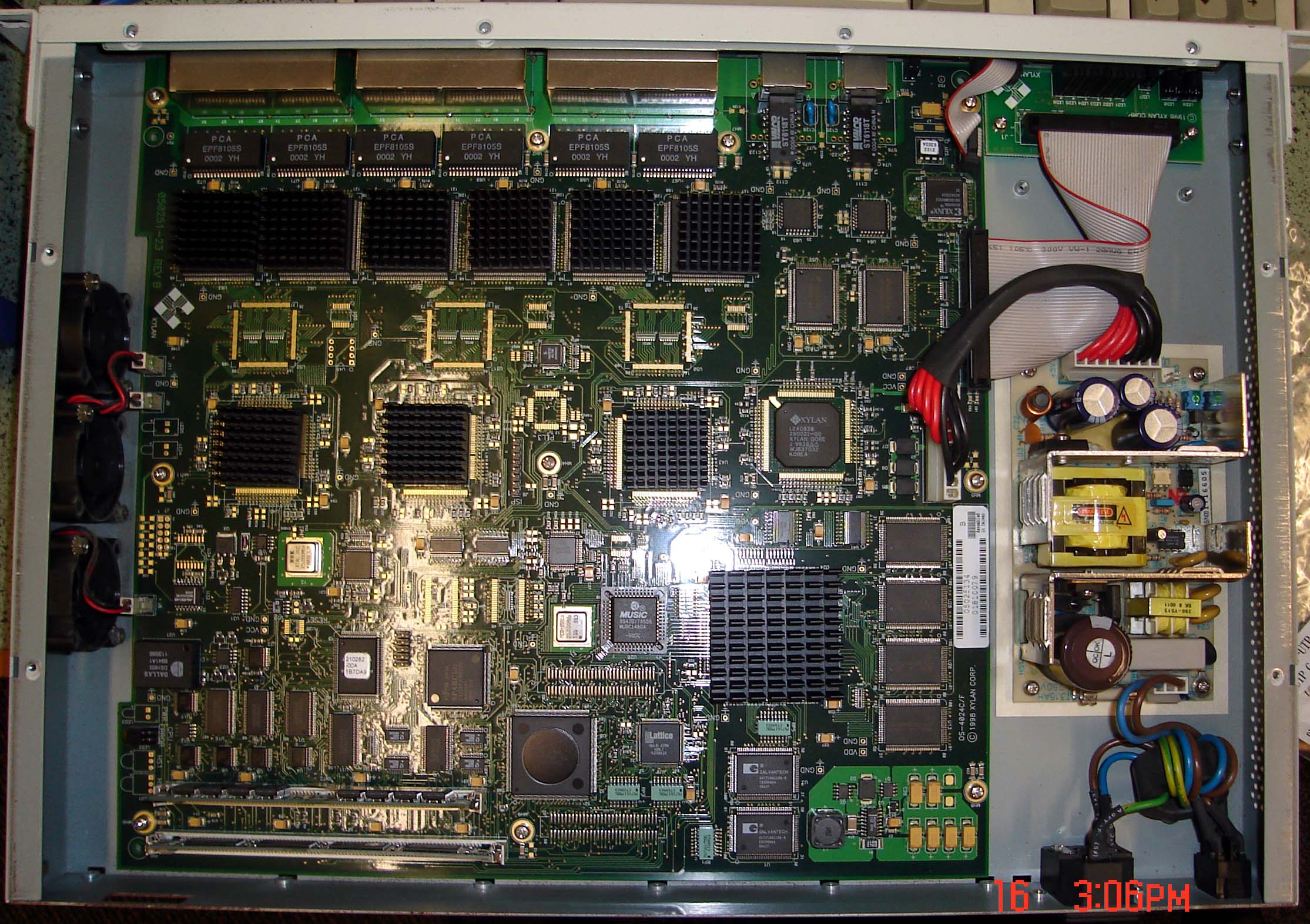

The mainboard (I voided my warranty for this page!)

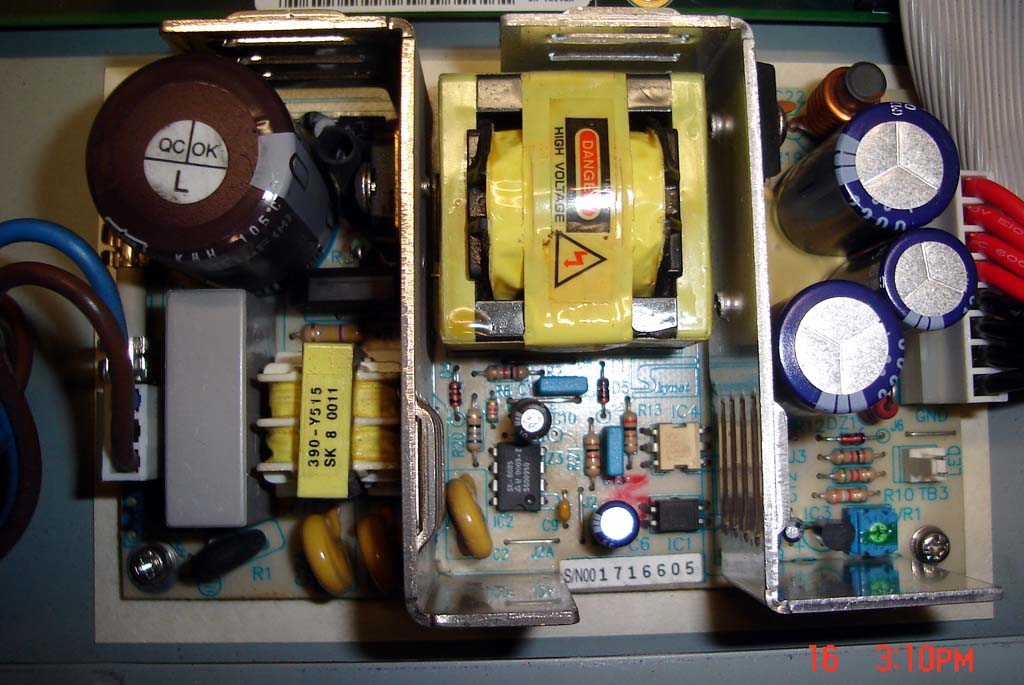

Guts of the internal PSU

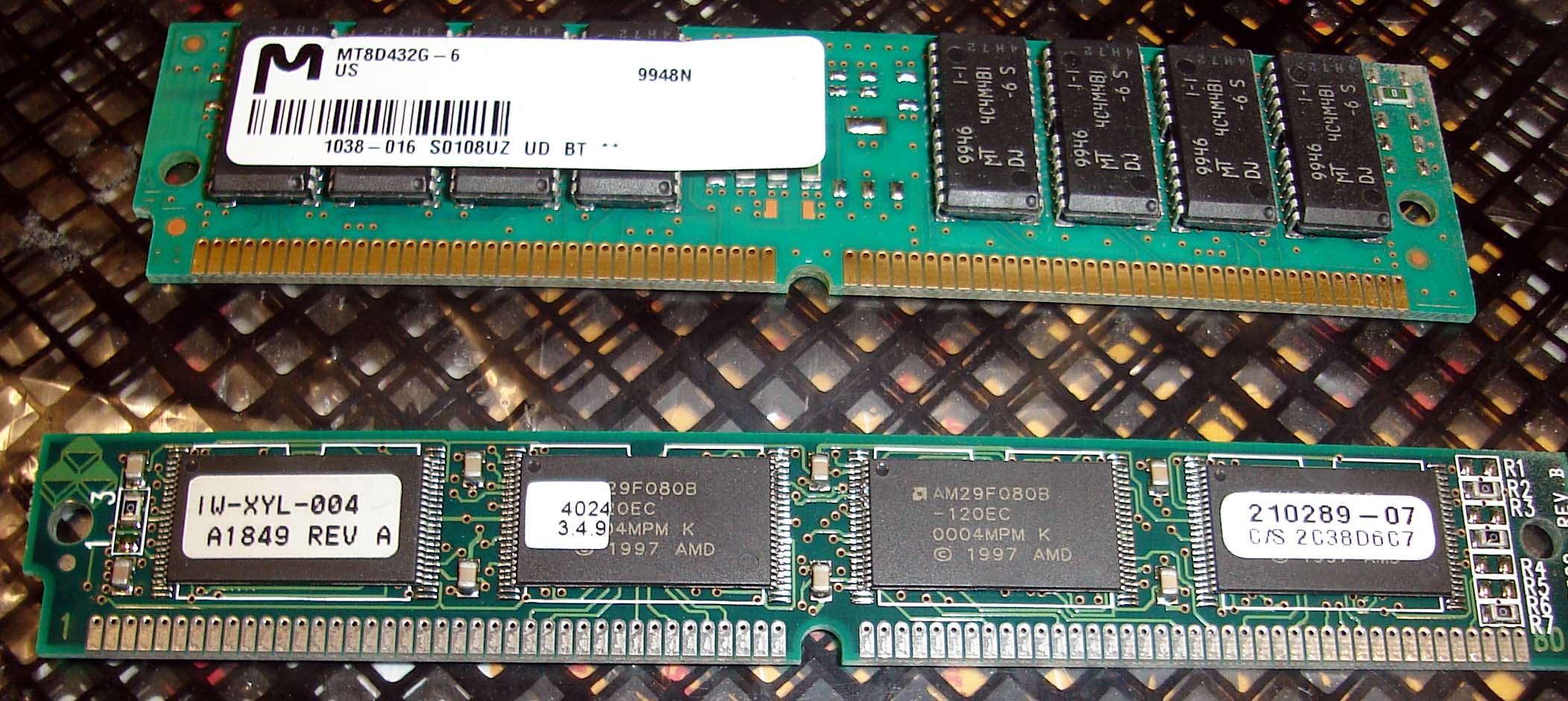

The two simms inside... the upper is 72 pins and the lower is 80 pins. Not sure which is used for what though.

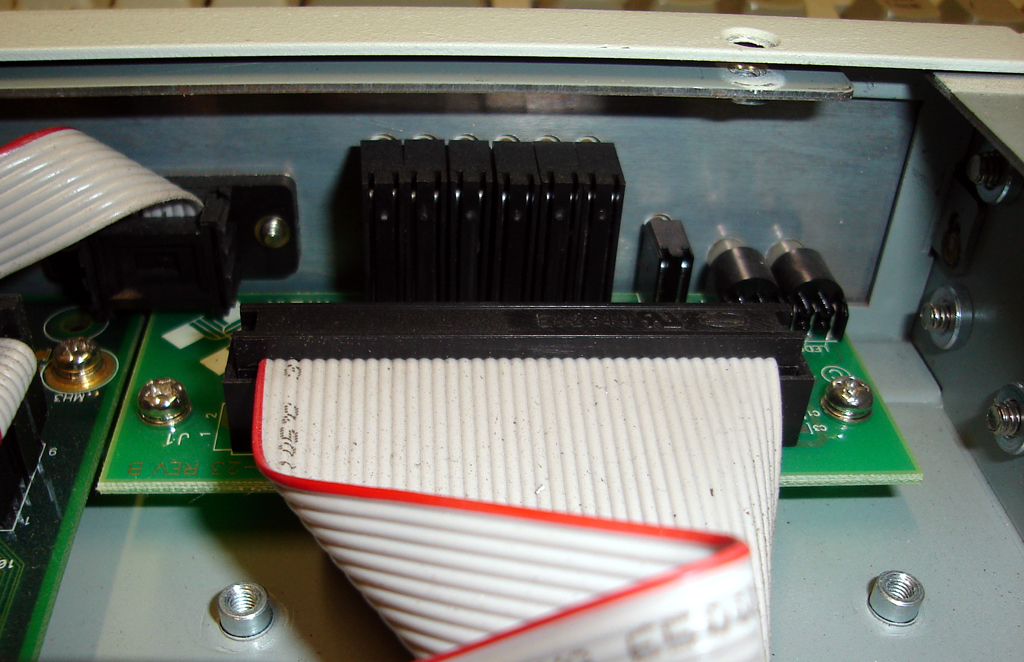

Inside of the unit where the status LEDs are

Specifications

This is the hardware:

CPU

No idea - Could be a sparc derivitive, given the SPARC chip on the board.

Console and serial cable

The front panel console port is a bog standard RS232 socket. You need a 9 pin serial cable with a male end for your computer, and a female end for the switch. Minicom is known to work fine. Port speeds should be 9600 N81.

Command Set

Click here for the command set.

VLANs

More details will be added over time. Any queries - email me from this mailer page

Links

Other Interesting Stuff

Unanswered Questions

How to find out who has logged in, from what IP address, and when?
How to list failed login attempts?
How to backup file system or config from switch?
Can you save the mp4.img from a omnistack 4024 by tftp or serial line, to restore the imag to another omnistack 4024 with the file system totally erased?

How can I reset the switch to Factory Defaults?

I advise unplugging all ethernet cables from your switch before doing this.

  1. You need to connect via a console serial cable with suitable terminal software running
  2. Power on the switch
  3. Hit any key when prompted by boot process about 10 seconds after power-up to get to boot/diagnostic menu
  4. Enter c
  5. Press enter (which accepts the defaults) until line displays: "Boot Flags :0xb"
  6. Enter 0x1000
  7. Press enter until back at the "[Boot]:" prompt
  8. Enter S to save settings (thats a capital S)
  9. Enter @ to boot

The Switch has reset to factory defaults.

What is the default username and password?

Login: admin
Password: switch

How to change the password?

Log in as admin and enter pw admin then choose a better password.

What is the default IP address for an Alcatel Omnistack switch?

192.168.10.1 and the default netmast is 255.255.255.0

Where can I find configuration documentation (instructions) for an Omnistack 4024C?

No idea - thats why I compiled all my findings on one page for other users. If you know something I don't please tell me.

How do you change the switch's IP address from the default 192.168.10.1?

  • You need to connect via a console serial cable with suitable terminal software running
  • Power on the switch
  • Hit any key when prompted by boot process about 10 seconds after power-up to get to boot/diagnostic menu
  • Enter c
  • Press enter (which accepts the defaults) until line displays: "Boot Options:"
  • Enter dvip:hostname,ip,netmask,broadcast
    that is dvip:myswitch,192.168.66.77,255.255.255.248,192.168.66.64
  • Press enter until back at the "[Boot]:" prompt
  • Enter S to save settings (thats a capital S)
  • Enter @ to boot

    The Switch will now have a new IP. Note - any errors on saving may imply the flash storage has died. Also, if the settings aren't sticking while the unit is power off then that suggests flash storage problems.

    I did a factory reset and all my ports are coming up as half-duplex. How do I fix it??

    Log into the switch via serial or telnet, and type 10/100vc to see the config. Set all ports to auto negotiate with 10/100cfg 3/ and 10/100cfg 2/ for both ports on slot 2. If you then want to change individual ports back to half duplex or 10 Mbit then 10/100cfg 3/1 will modify port 1 of the 24 on slot 3.

    Whats a CAM?

    Content Addressable Memory, which is used by the switch to extend the size and/or speed of tables like MAC and BGP. CAMs typically have processing power on them.

    Can I find the temperature?

    hdstat shows a line of temperatures for the last 1 min avg, and 1 hour avg and maximum.

    Still to document Channel Bonding VLANs SNMP

    More details will be added over time. Any queries - email me from this mailer page
