Woodsman Fireplace

Measurements

The hole in the wall where the fireplace was removed measures 682 mm wide by 593 mm high. The depth I can't measure because its all bricked up now.

The outside of the firebox itself is 492 mm wide by 551 mm high. The inside of the firebox is a cylinder 405 mm in diameter and 455 mm deep.

The door is 390 mm wide by 290 mm high.

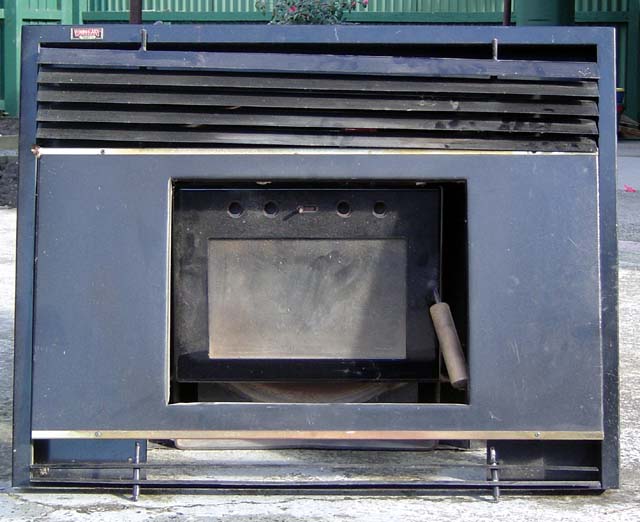

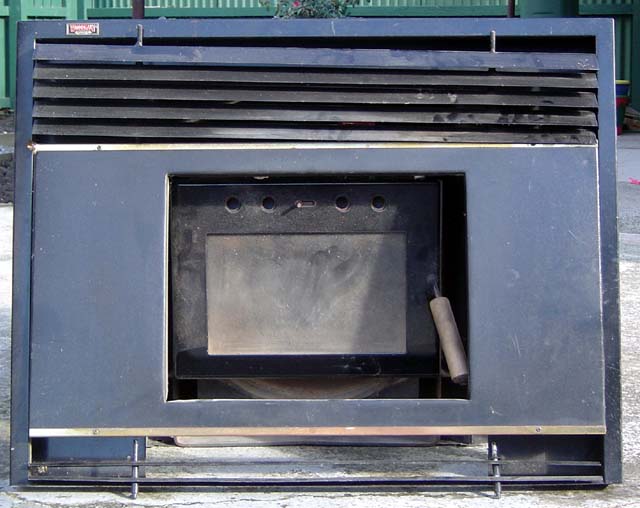

Frontage is a separate thing - you screw it on after installing the firebox. The front is 836 mm wide by 647 mm high, and is 65 mm deep.

  • This fireplace insert was removed earlier this year (2004) under the CRC's clean air scheme. It is not certified as a low emission burner, and therefore cannot be used in Christchurch.

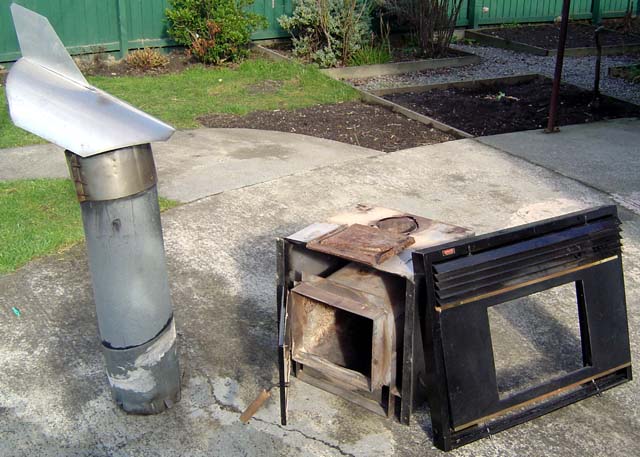

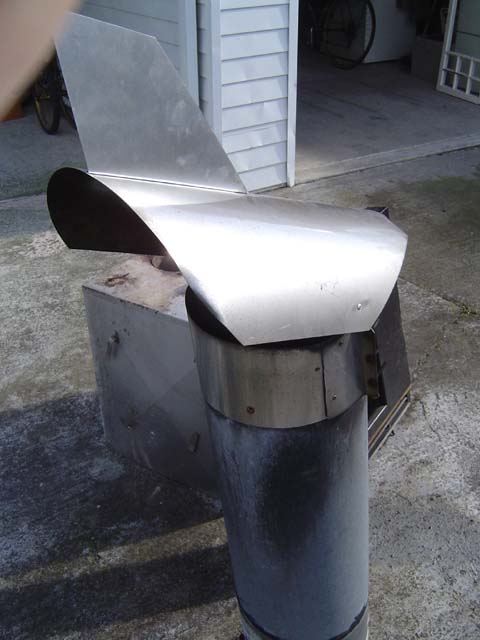

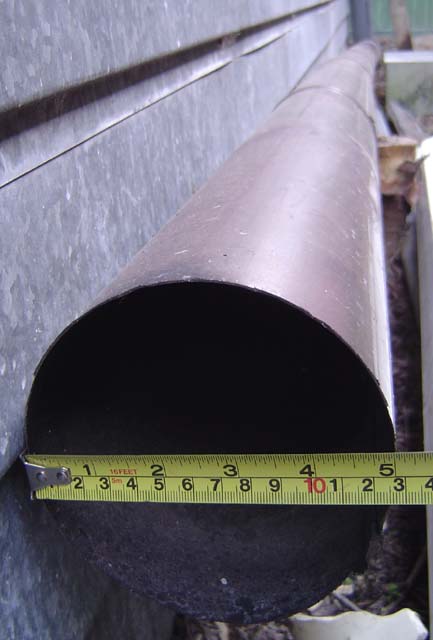

    However this insert fireplace would make a great upgrade for a bach or crib with an open fireplace. Gear includes the firebox, 4.2 metres of 5 inch flue, and a roof cowling. The age of the unit is totally unknown to me, but looks to be about ten years old.


    This file last modified Sunday January 23, 2005
