DEC Digital AlphaServer 2000 5/300 Linux this page is almost here now

The DEC Digital AlphaServer 2000 5/300 and Linux

Images

Click for larger images

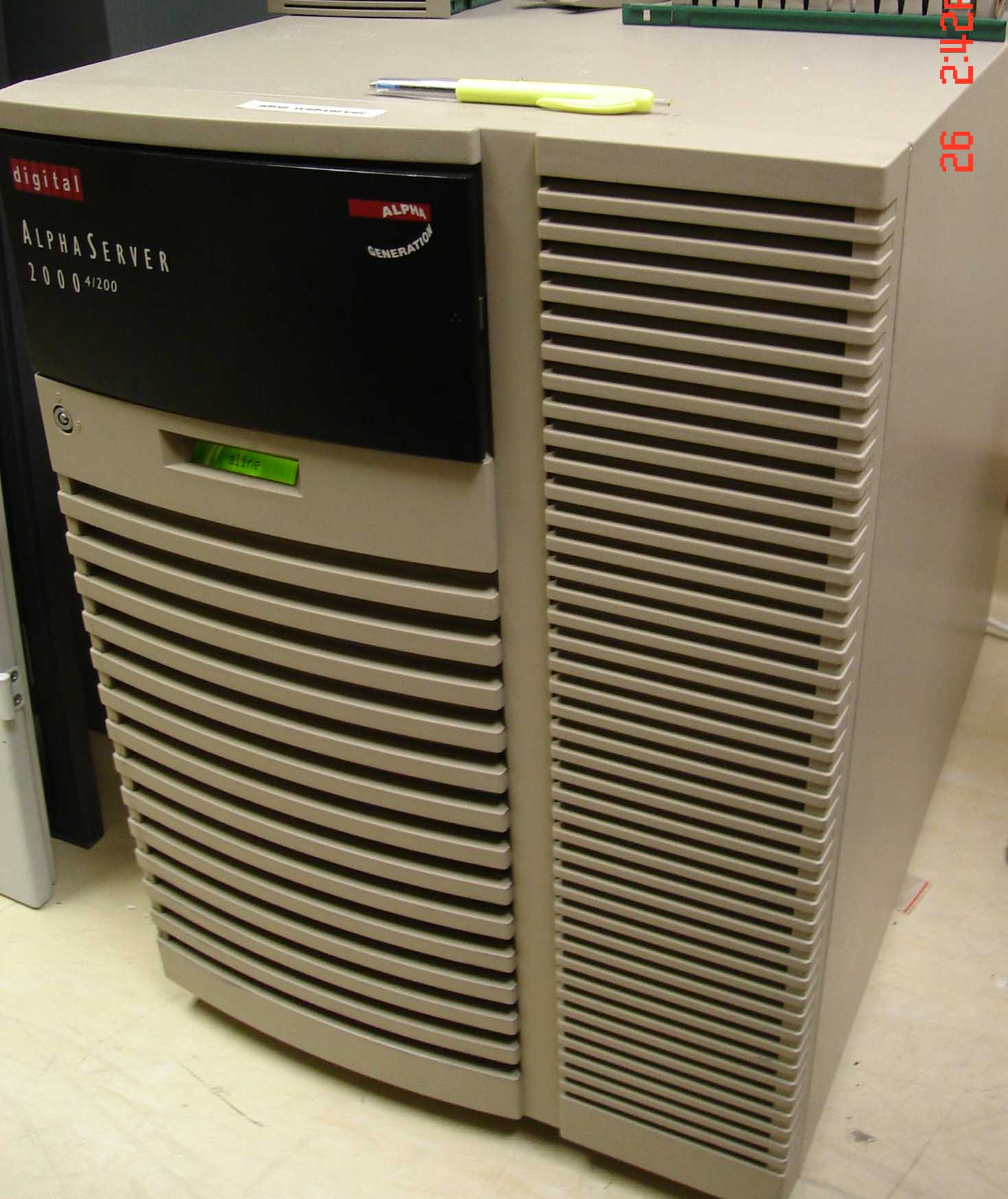

Outside

Real computers ~~have~~ require wheels...

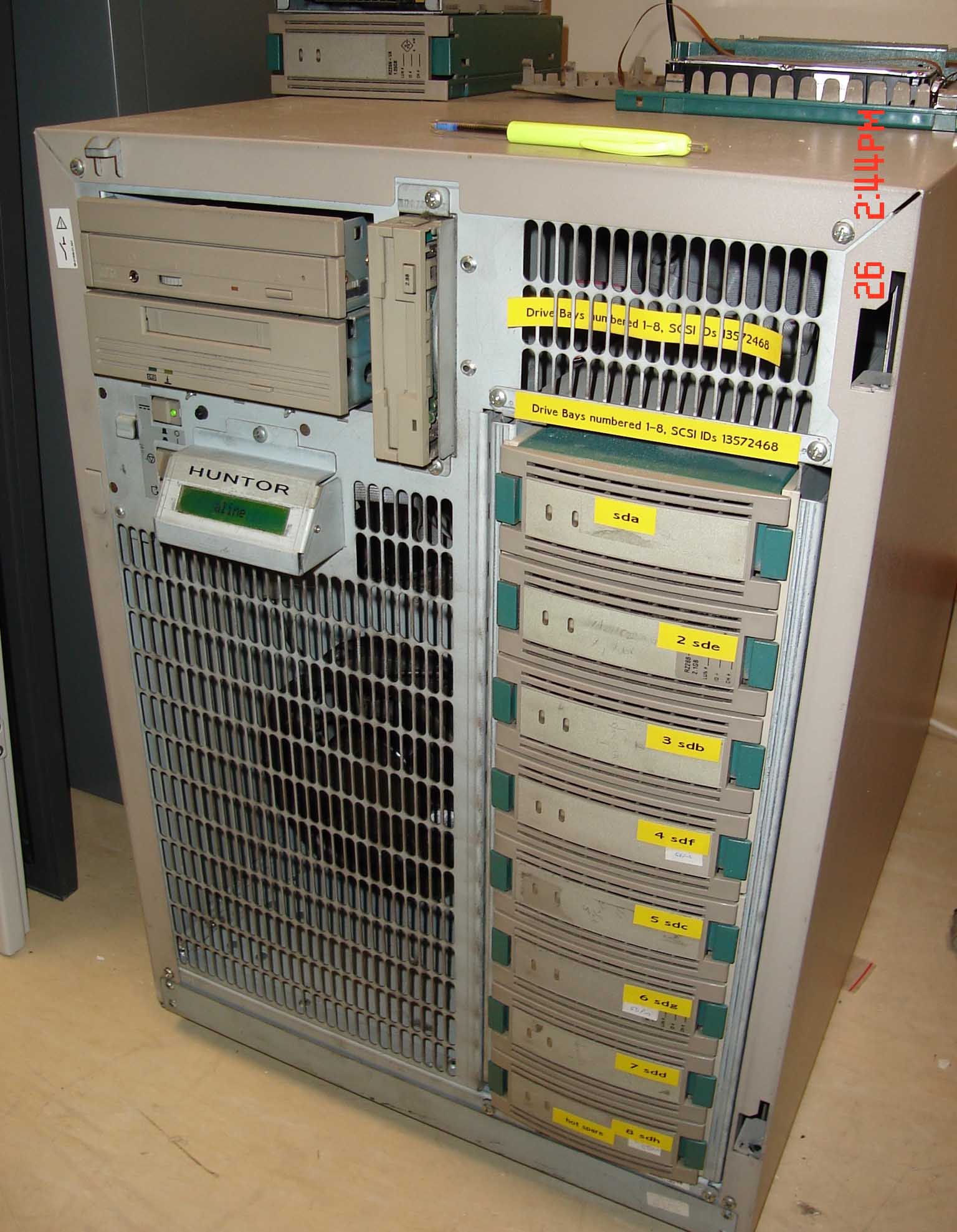

Front with door removed

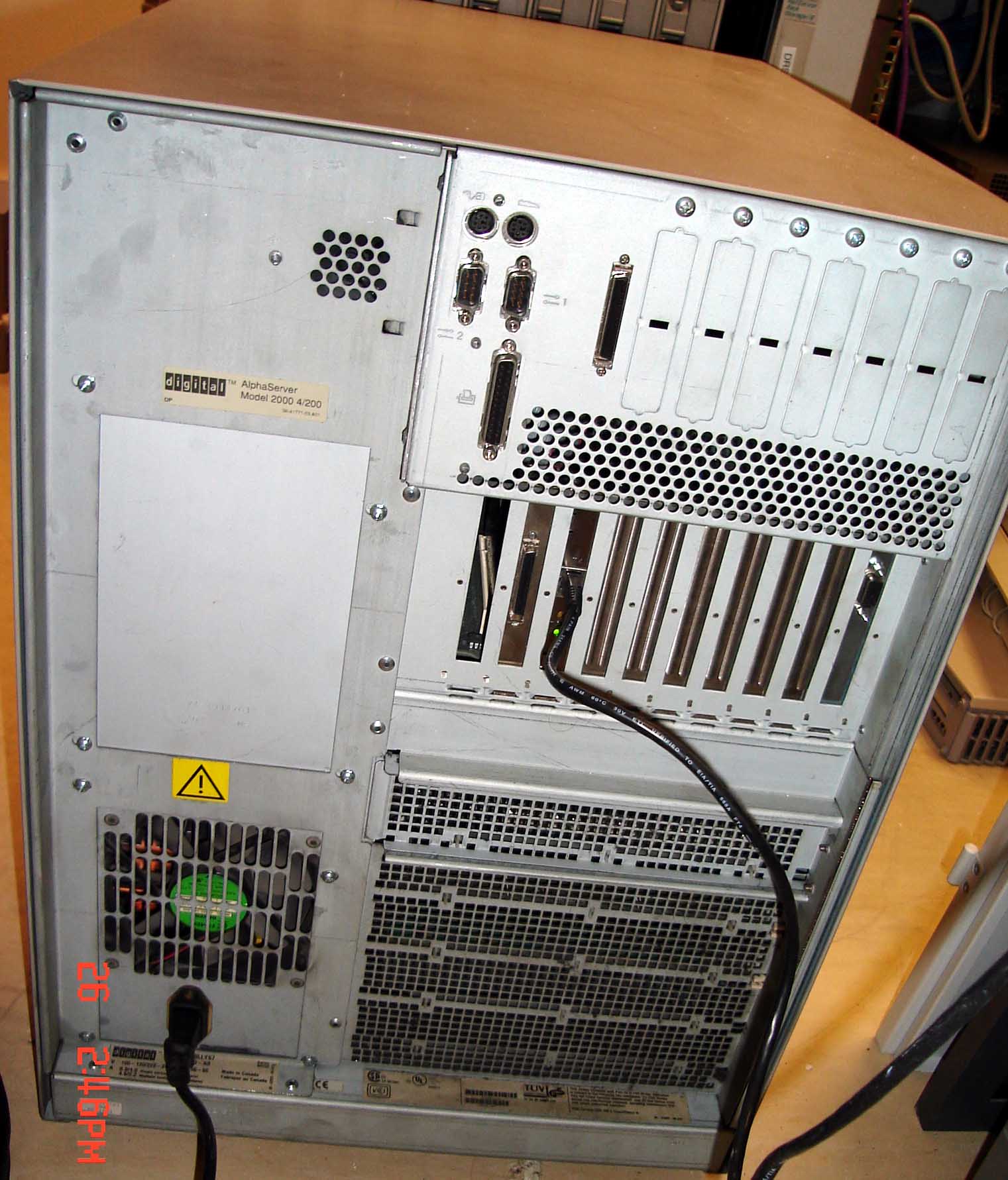

The back-side

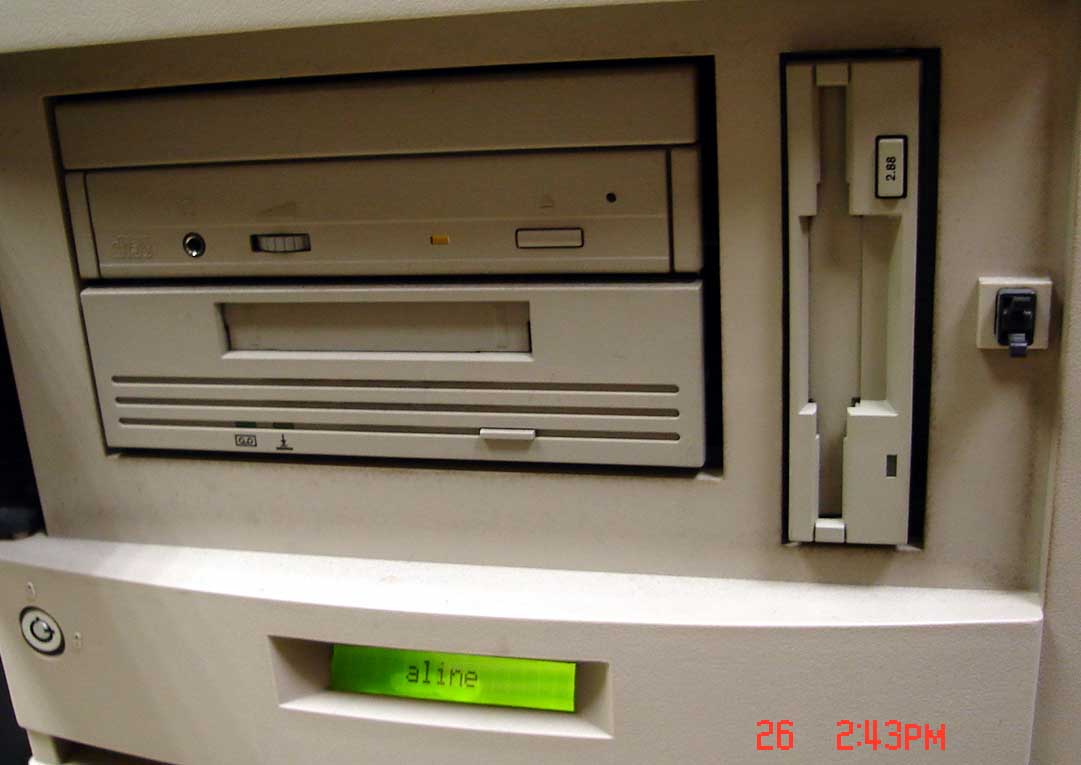

Removable Drives

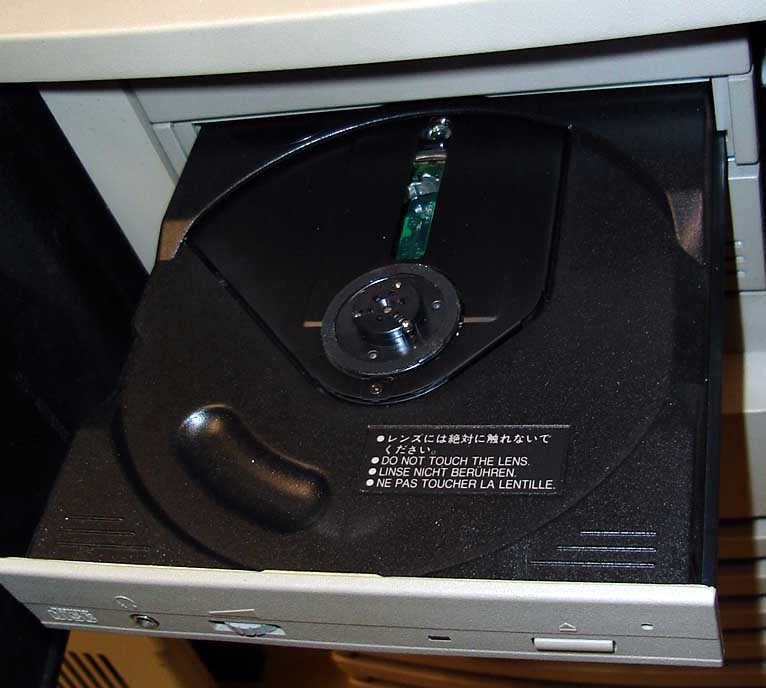

CD ROM Drive. CD clips onto spin motor just like a laptop CD drive.

Note the 2.8 Mb floppy drive

Provided Digial Unix CDs

Boards

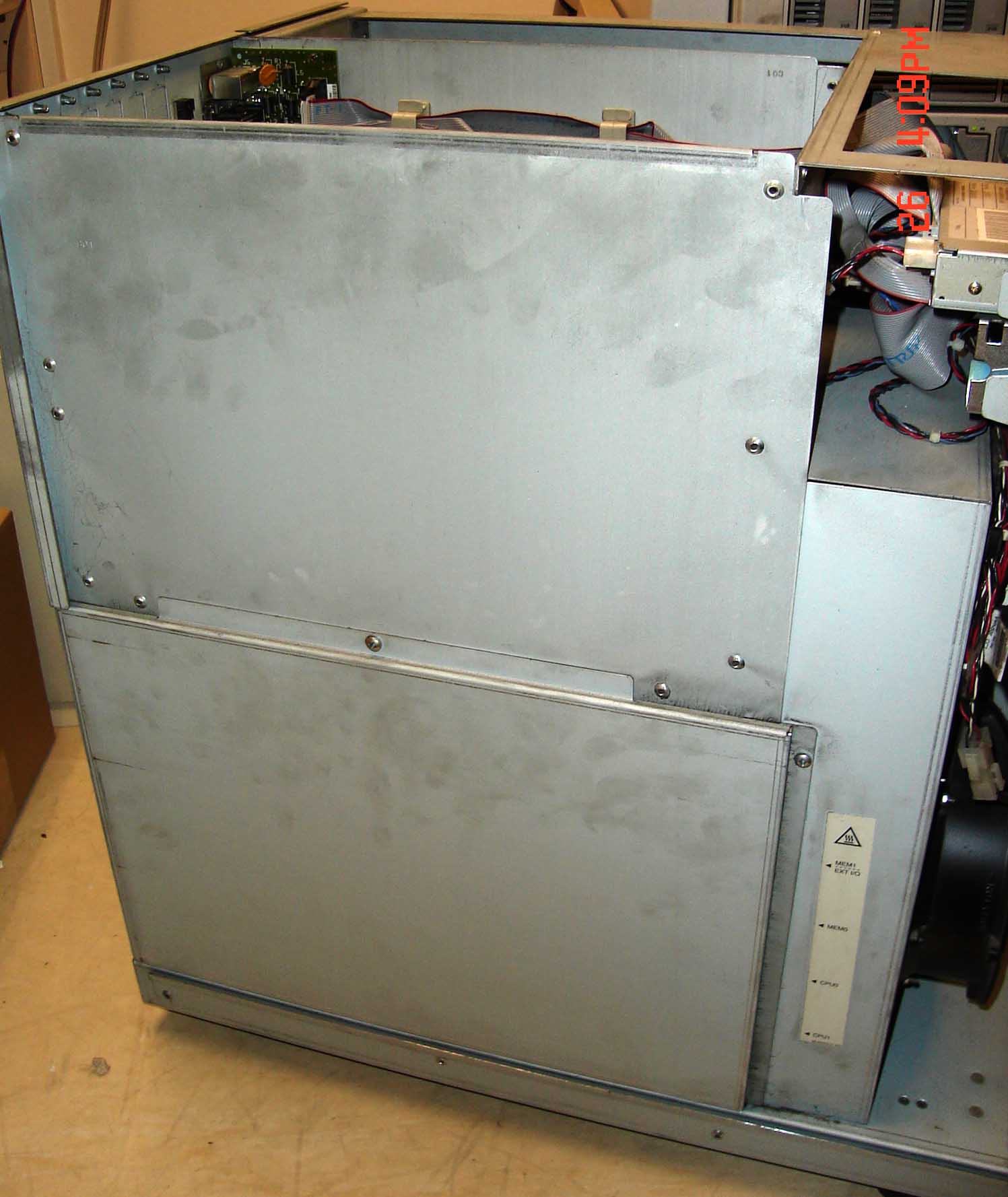

Board Cage Closed

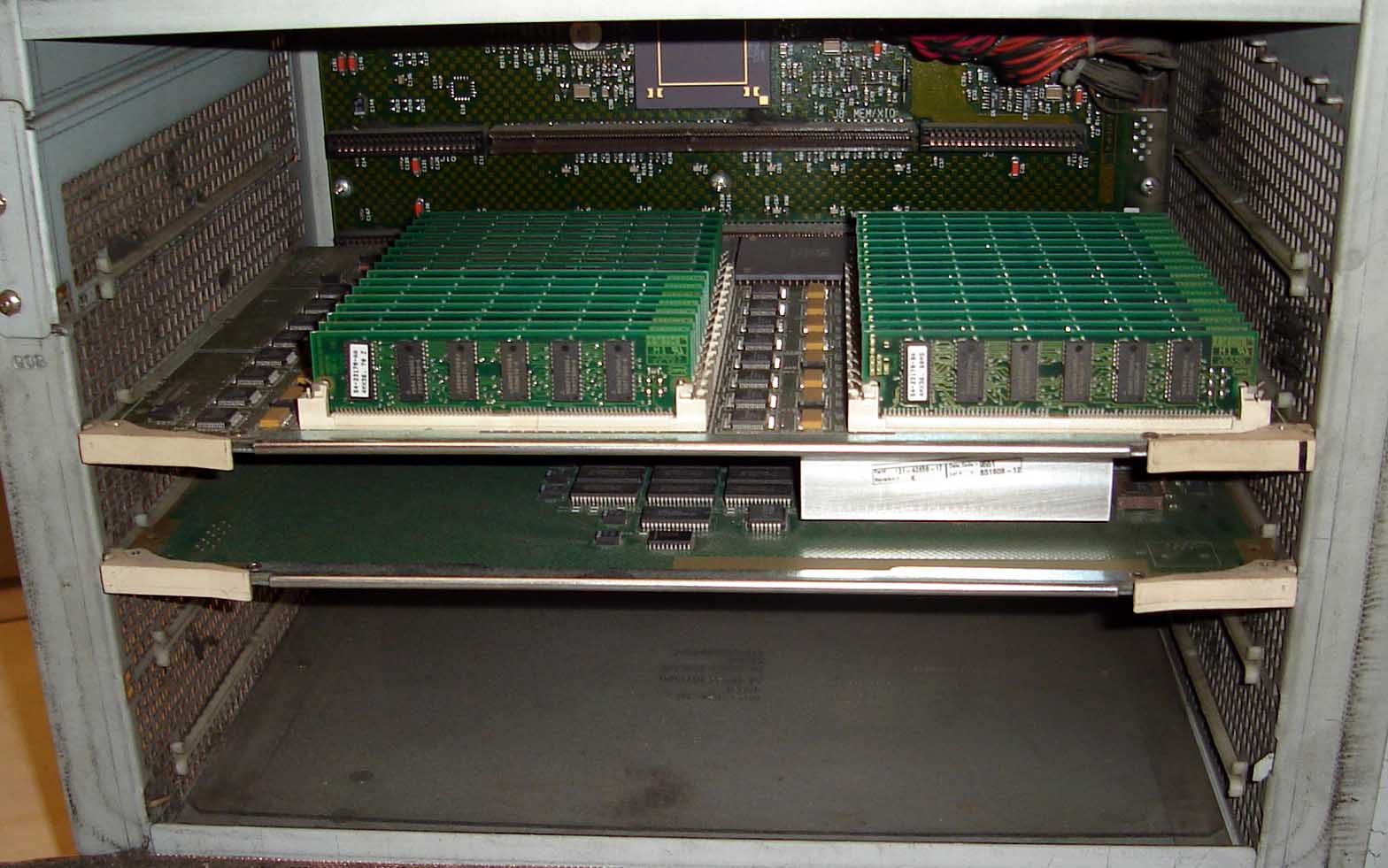

and Opened. Here is where the CPU and RAM boards live.

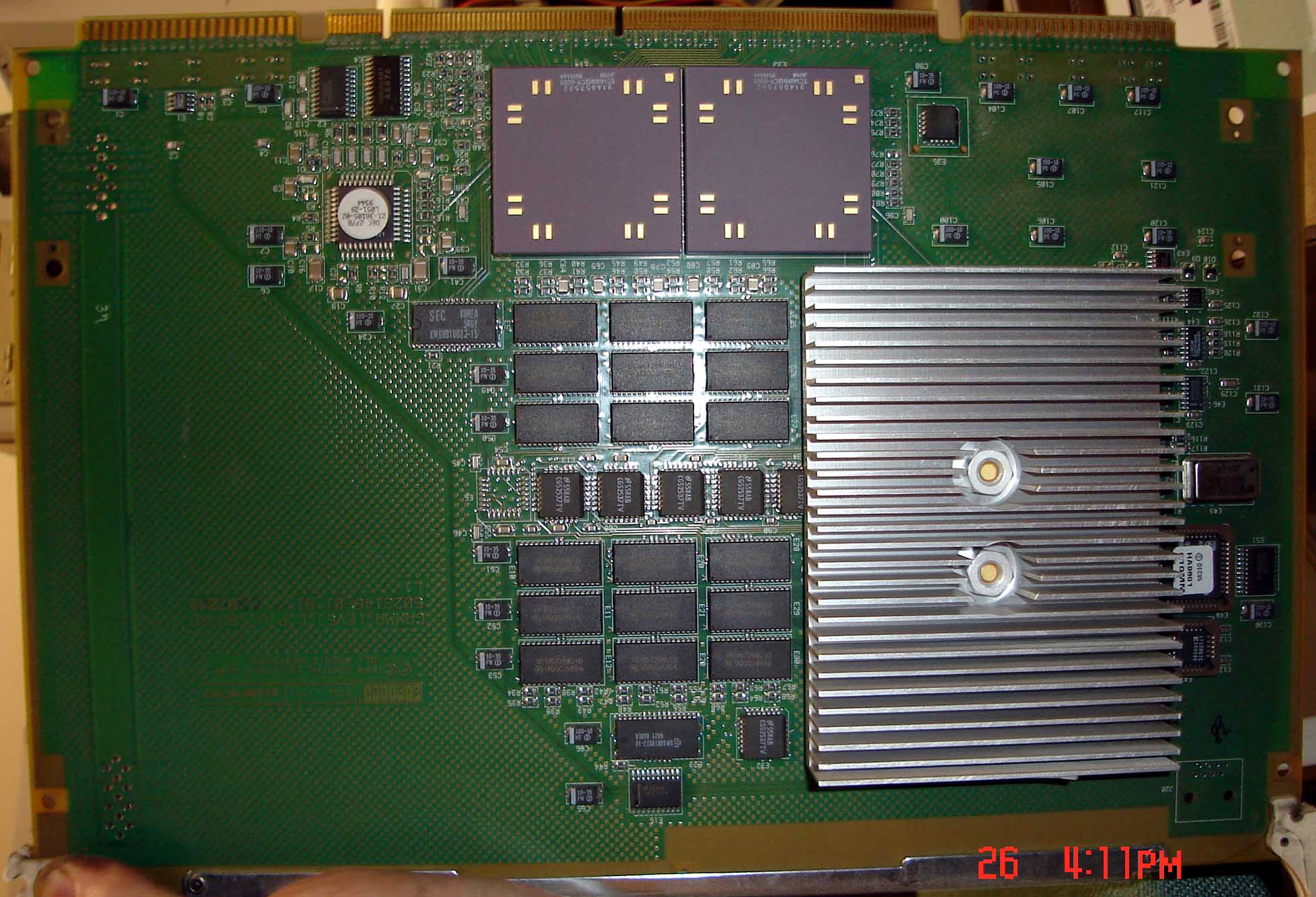

Top side

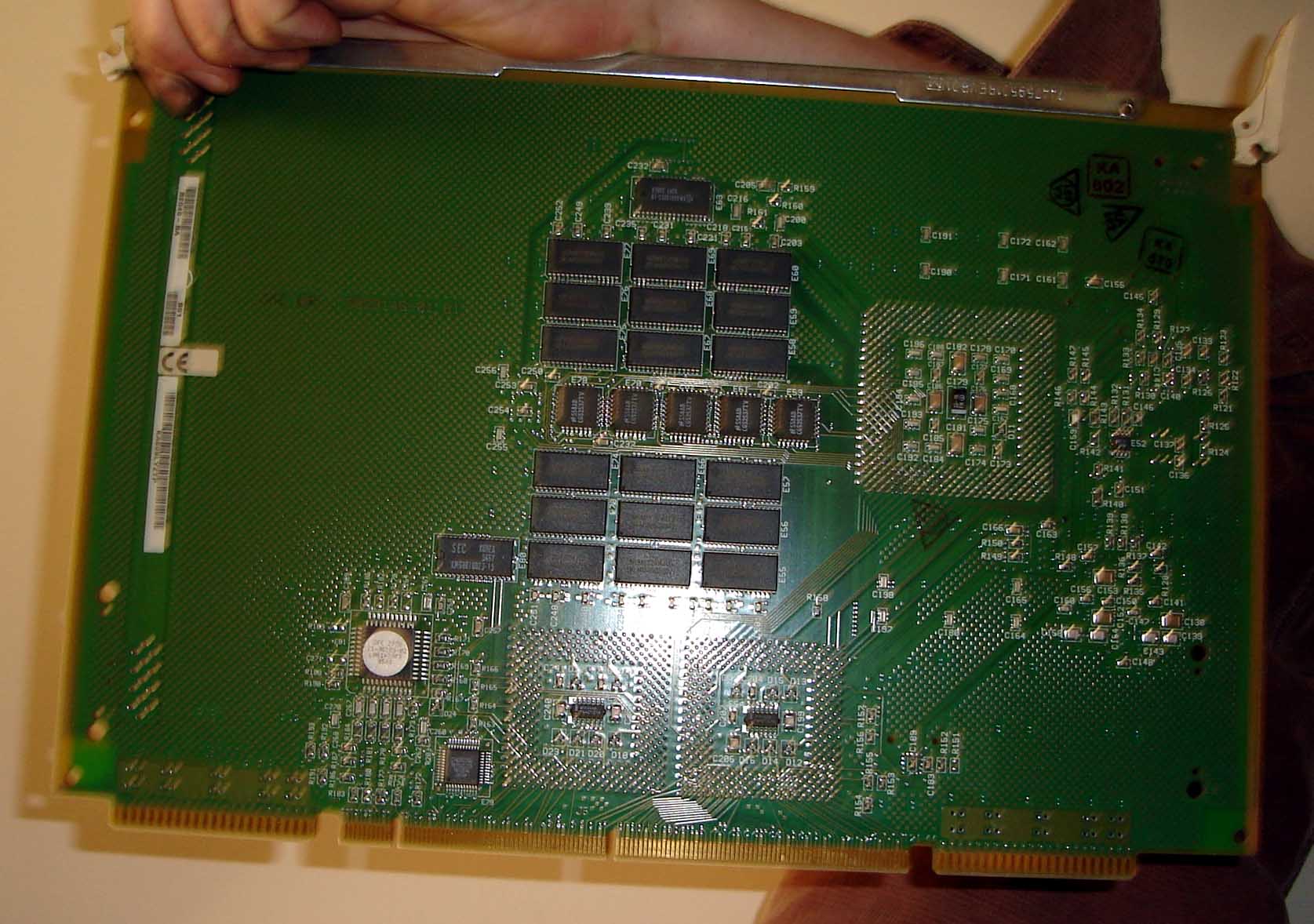

and bottom of my EV5 CPU board

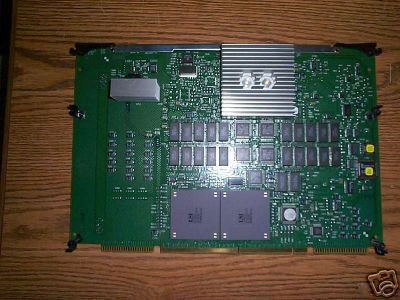

CPU board. Possibly an EV4

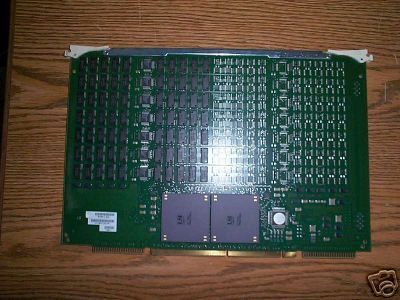

Memory board. Machine supports one or two. This one appears to be soldered.

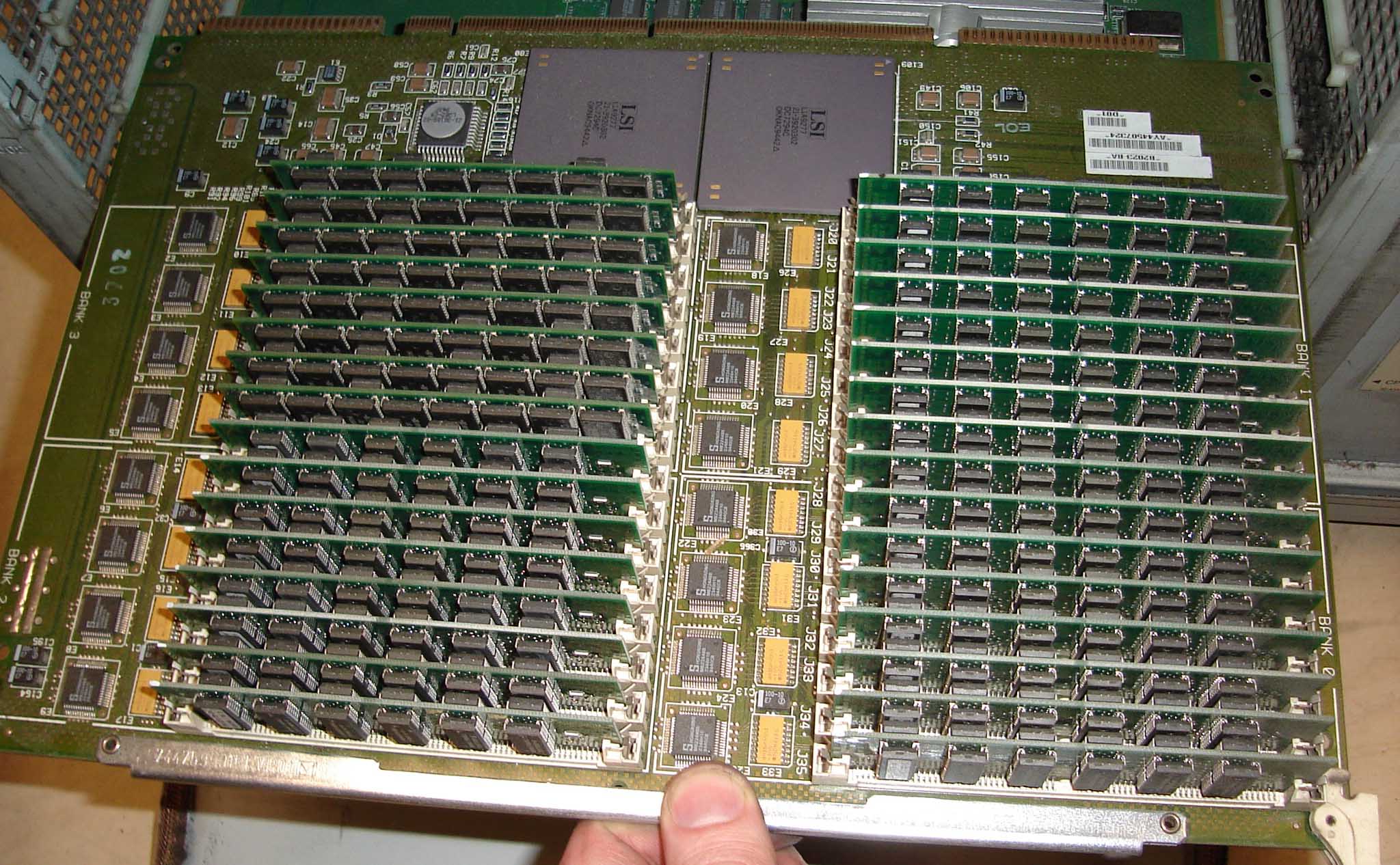

Memory board. This one has 32 simms of 16 Megabytes each for 512 Mb

Drives

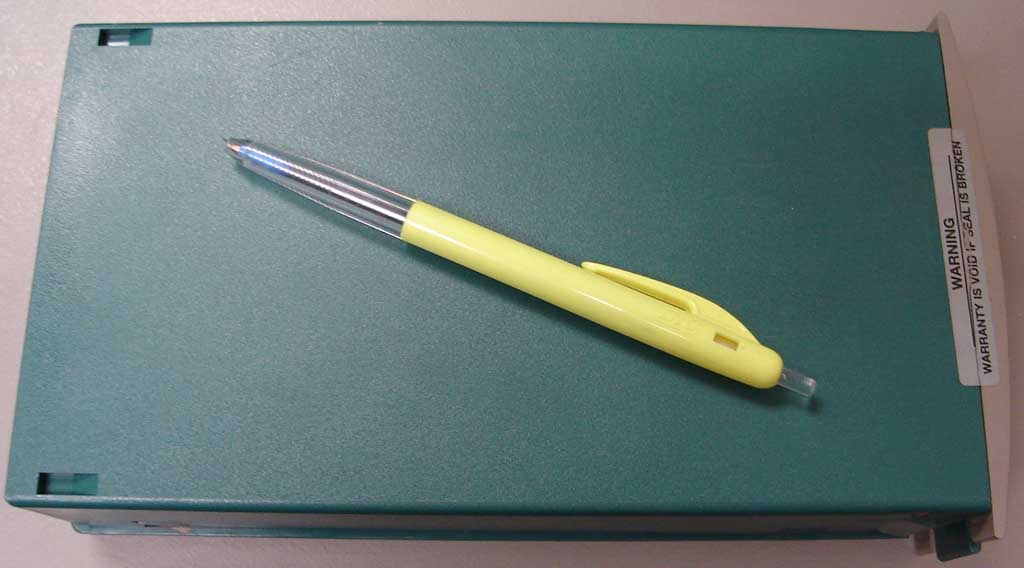

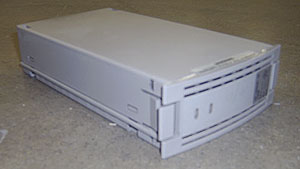

Random photo of SBB caddy

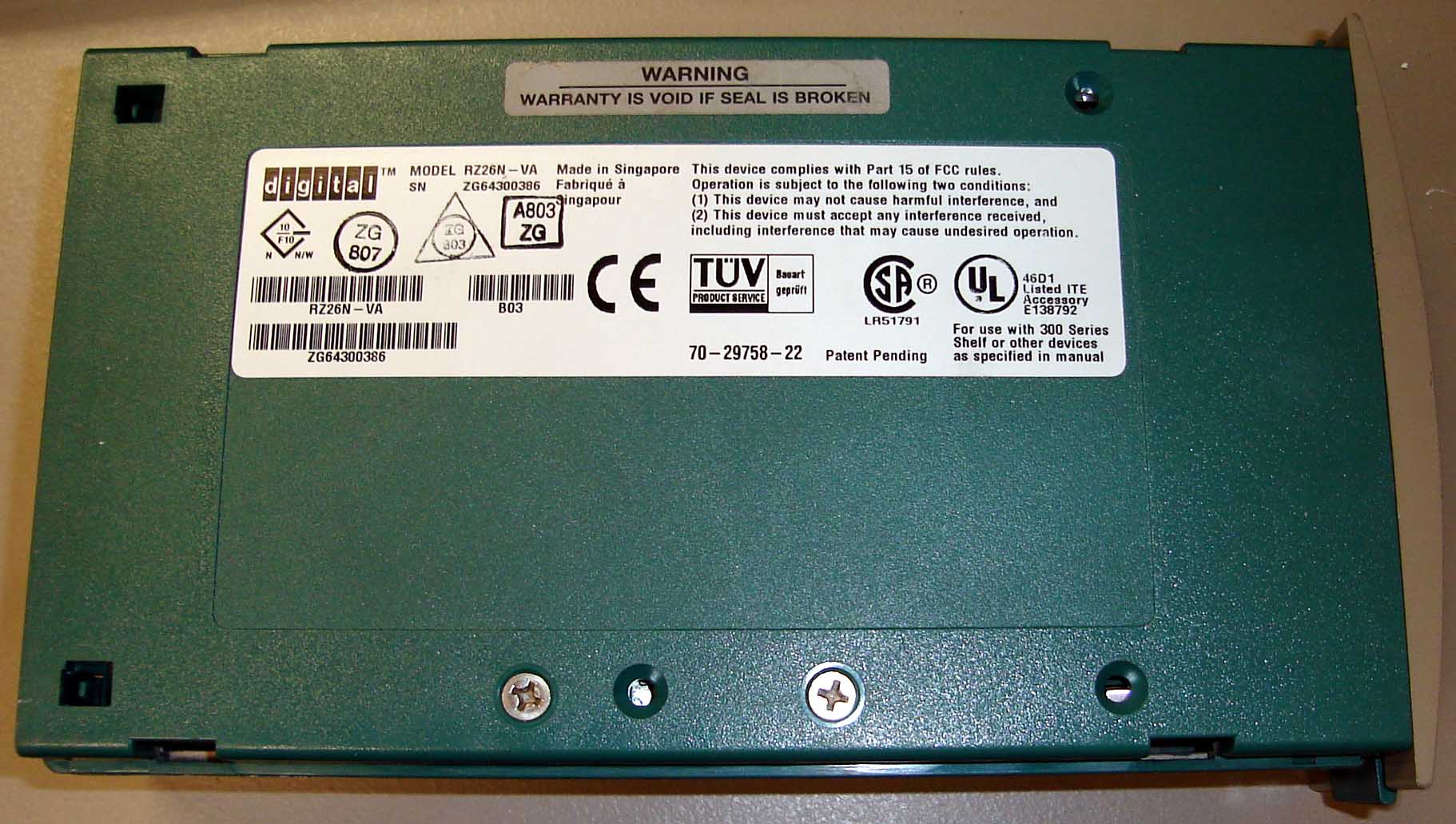

Label under an SBB caddy Note the unbroken warranty label :)

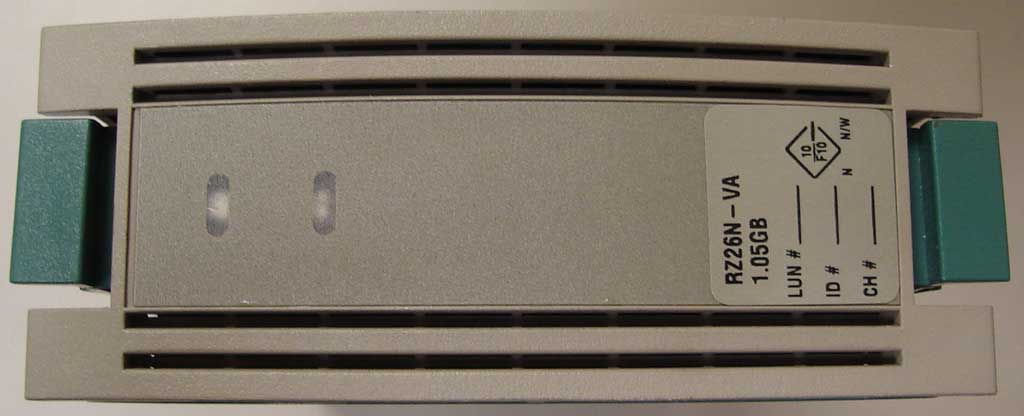

Front

Where the caddy connects to the drive inside. This shows a 68 pin drive, but other caddies have a 50 pin interface internally

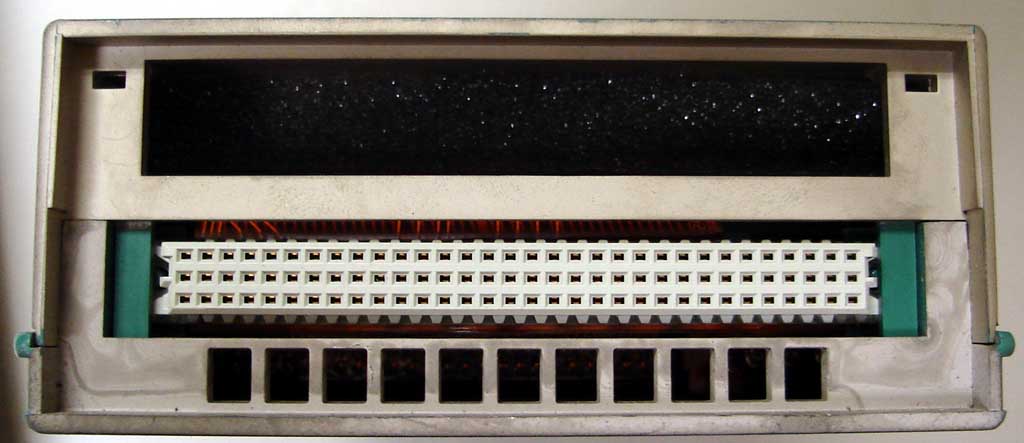

Caddy connector to back plane

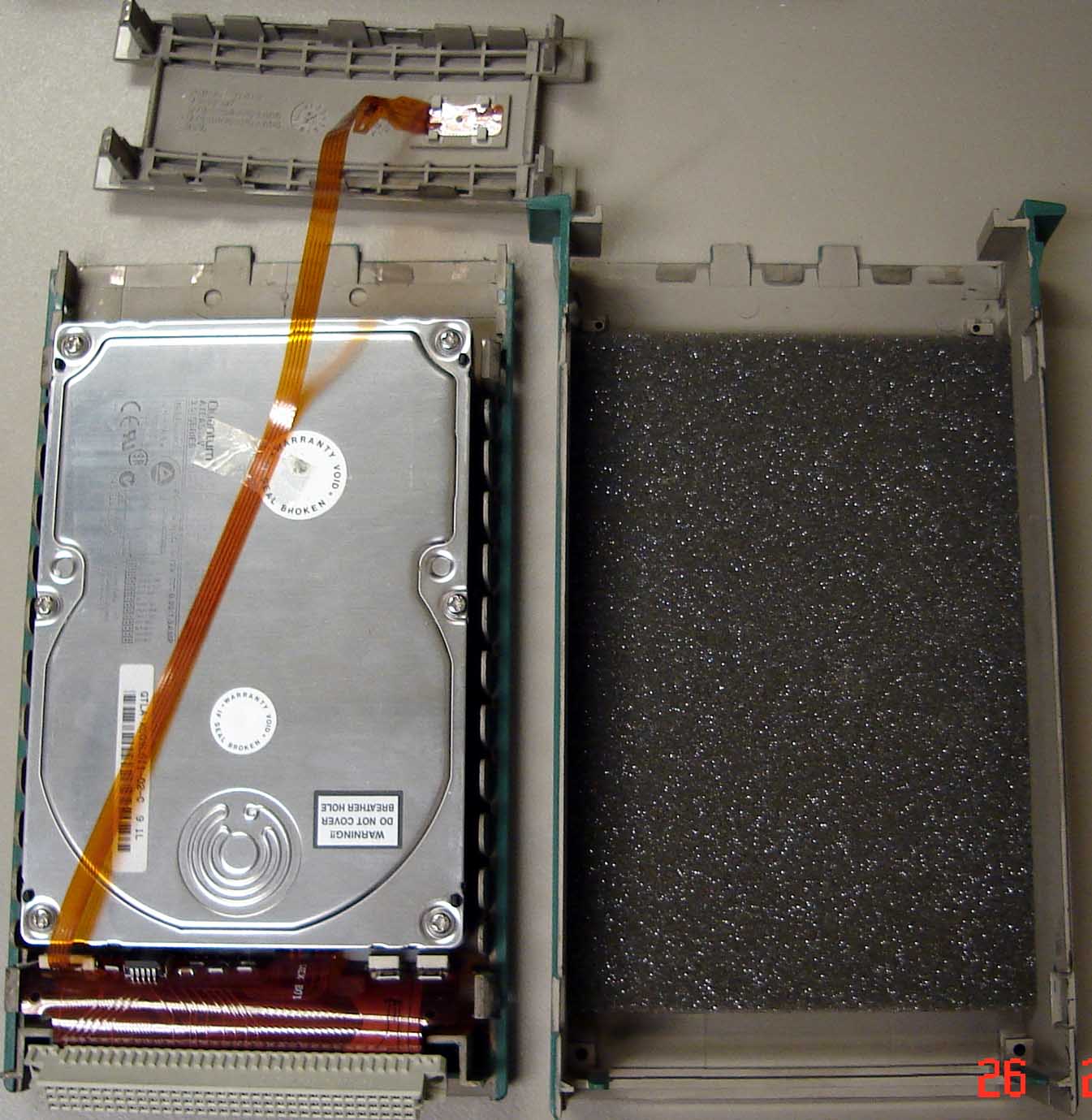

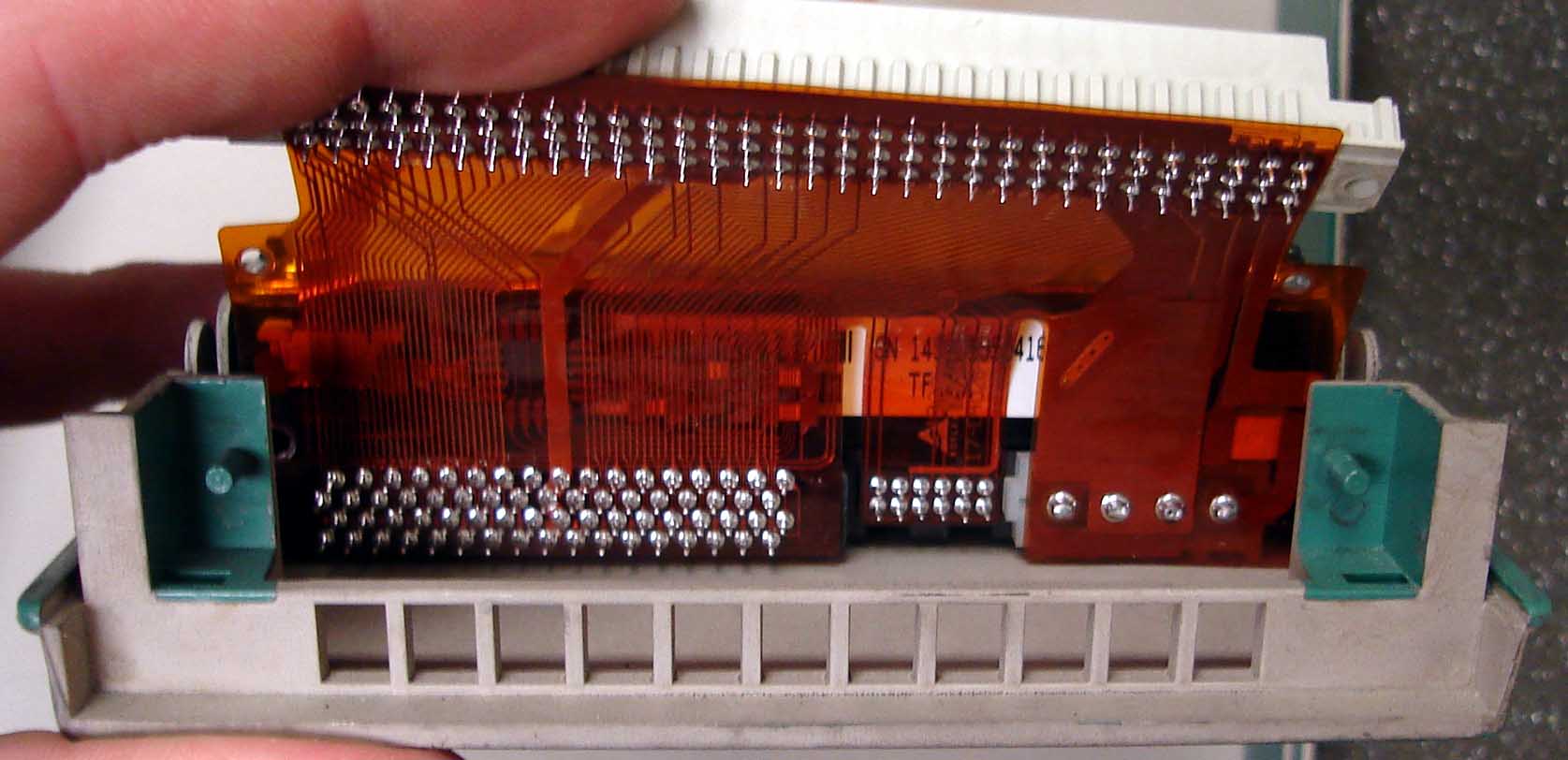

Inside of caddy

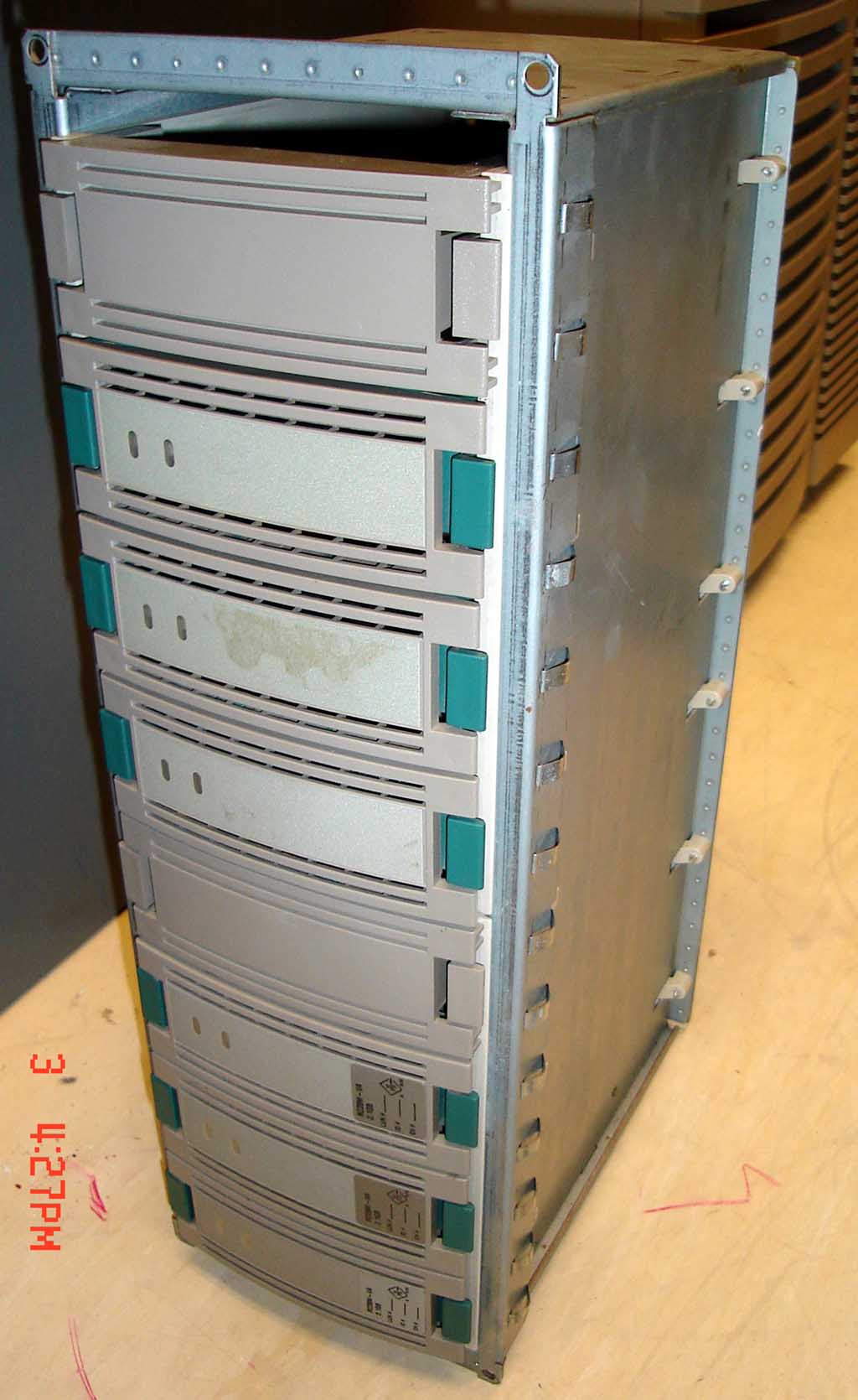

An external SBB rack.

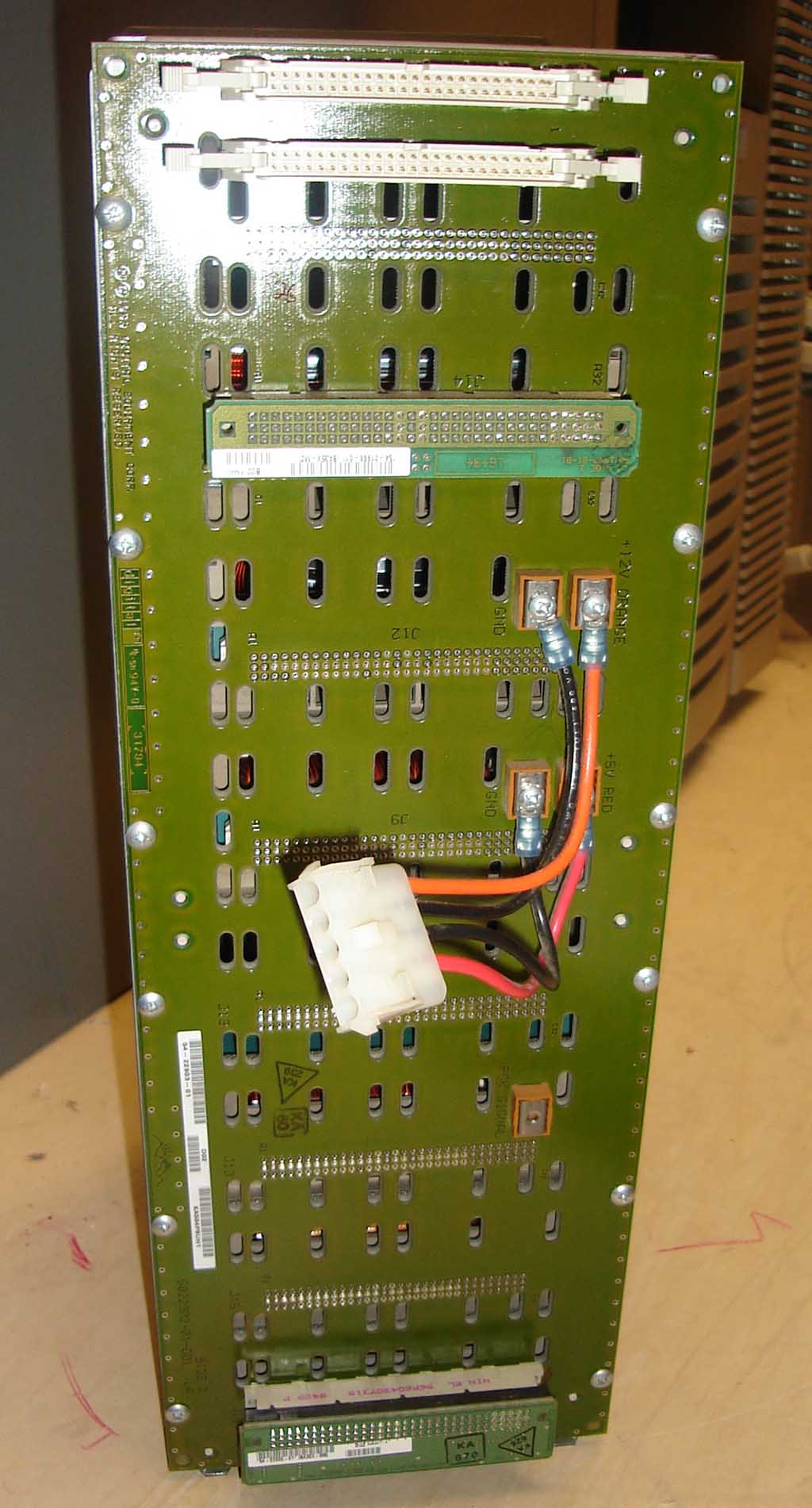

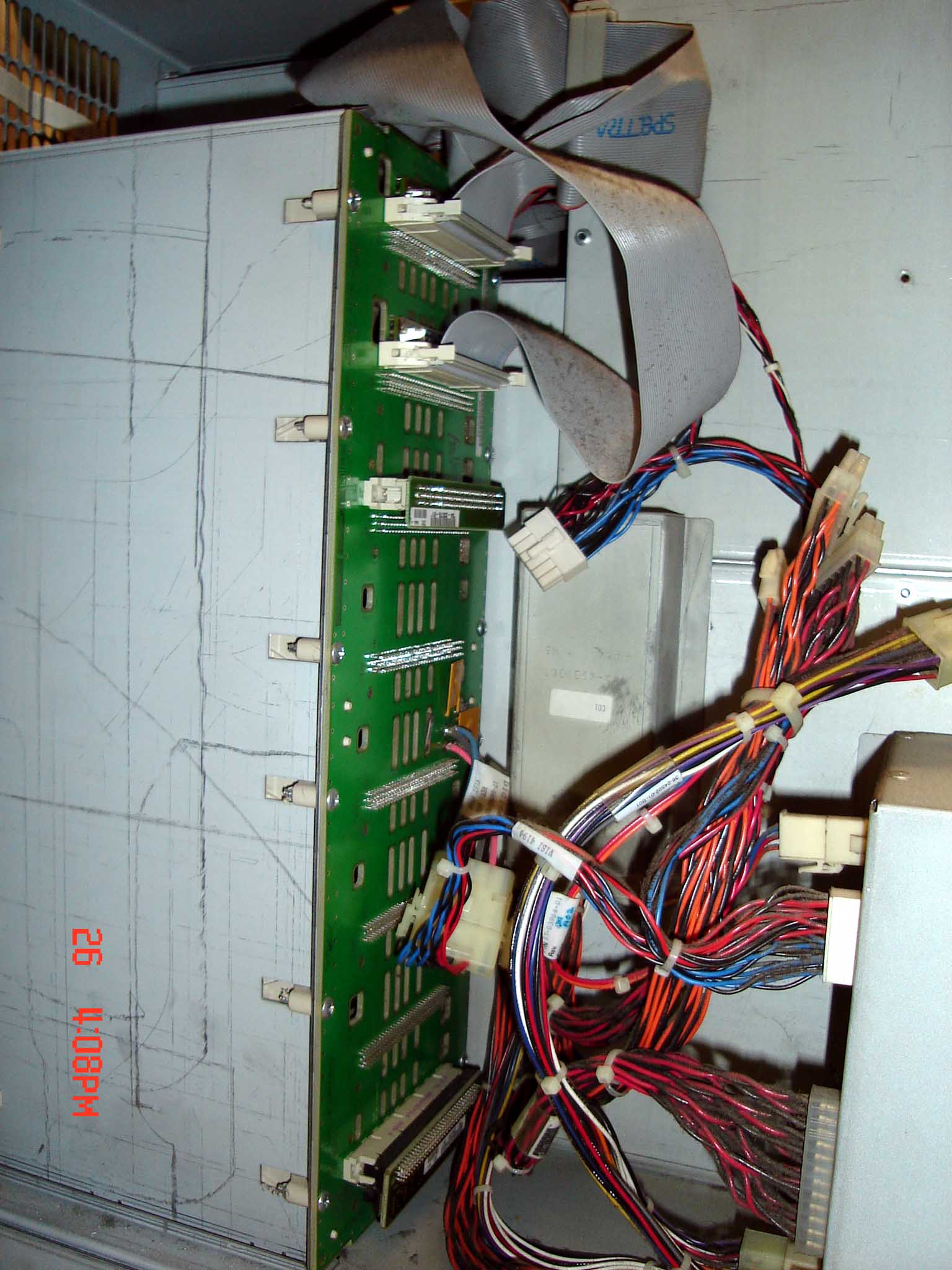

Inside case, where the drive caddies connect to the SCSI backplane. Note the extra connector and cable for the second SCSI controller.

I am continually amazed at the levels to which trademe users both rise and sink. A trademe user contacted me and offered this drive backplane for nothing. It has three 2Gb drives and three 1Gb drives. I'm going to add this item to the auction.

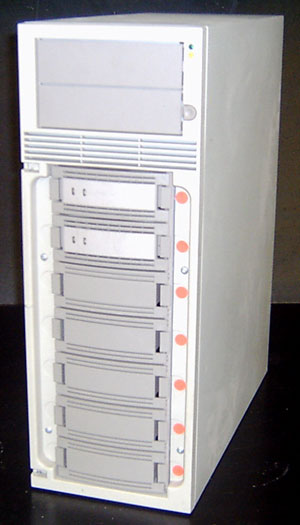

Front and

Rear.

The sucessful bidder could simply keep it as spares, or with a bit of thought could connect this to the qlogic SCSI controller and have some more drives. You would need to connect the SCSI bus and the power connector, and probably a very good idea to protect the rear of the unit too.

Other

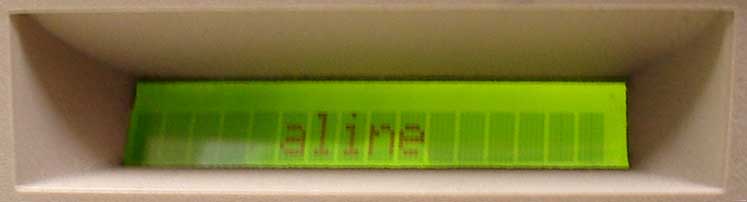

Small display on front. I think its so you can identify different nodes if you have more than one (expensive stickey label!) and so that a user can see the POST testing before the monitor starts. See below for a recording of that (30 Mb)

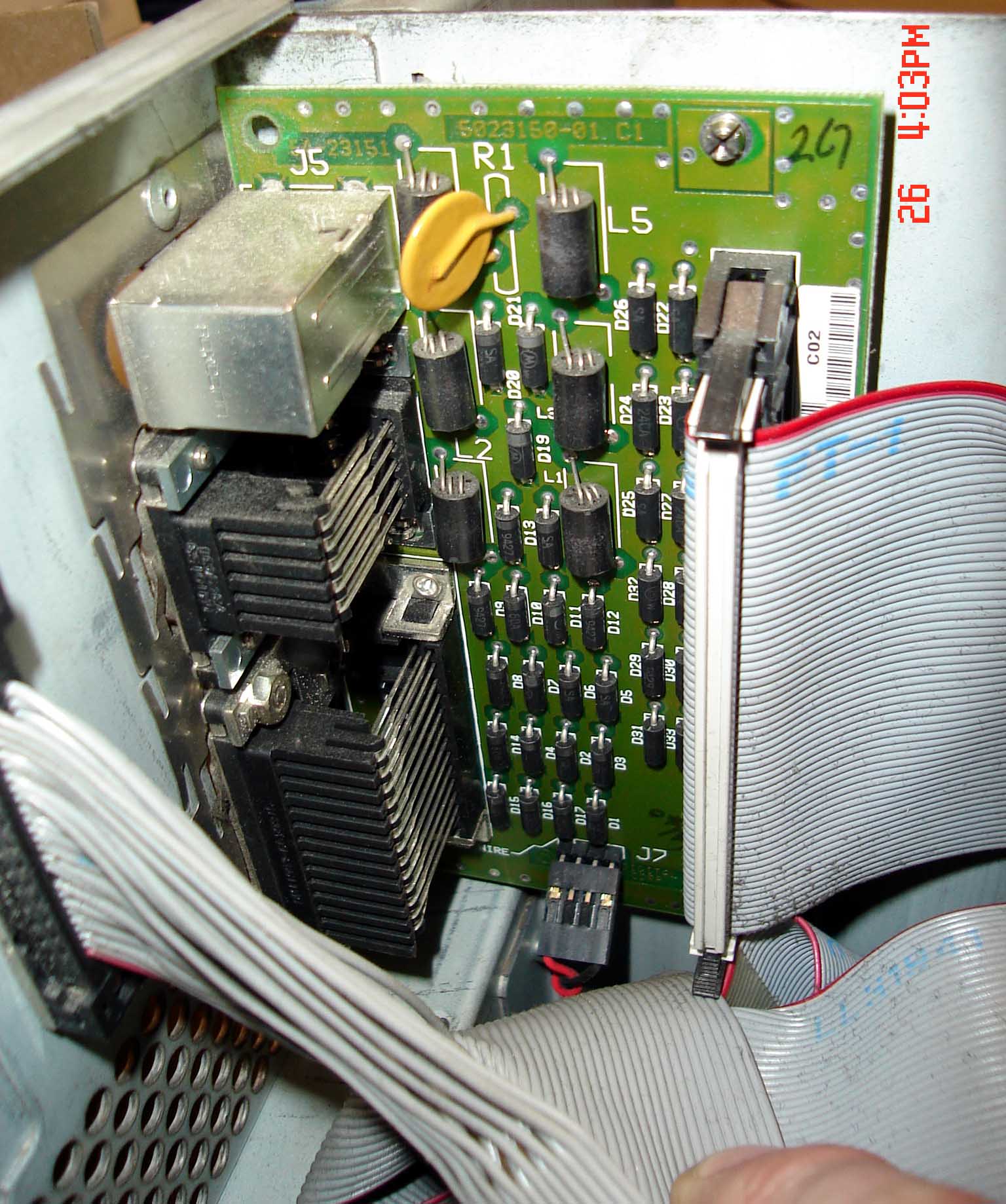

Keyboard/serial/parallel connectors.

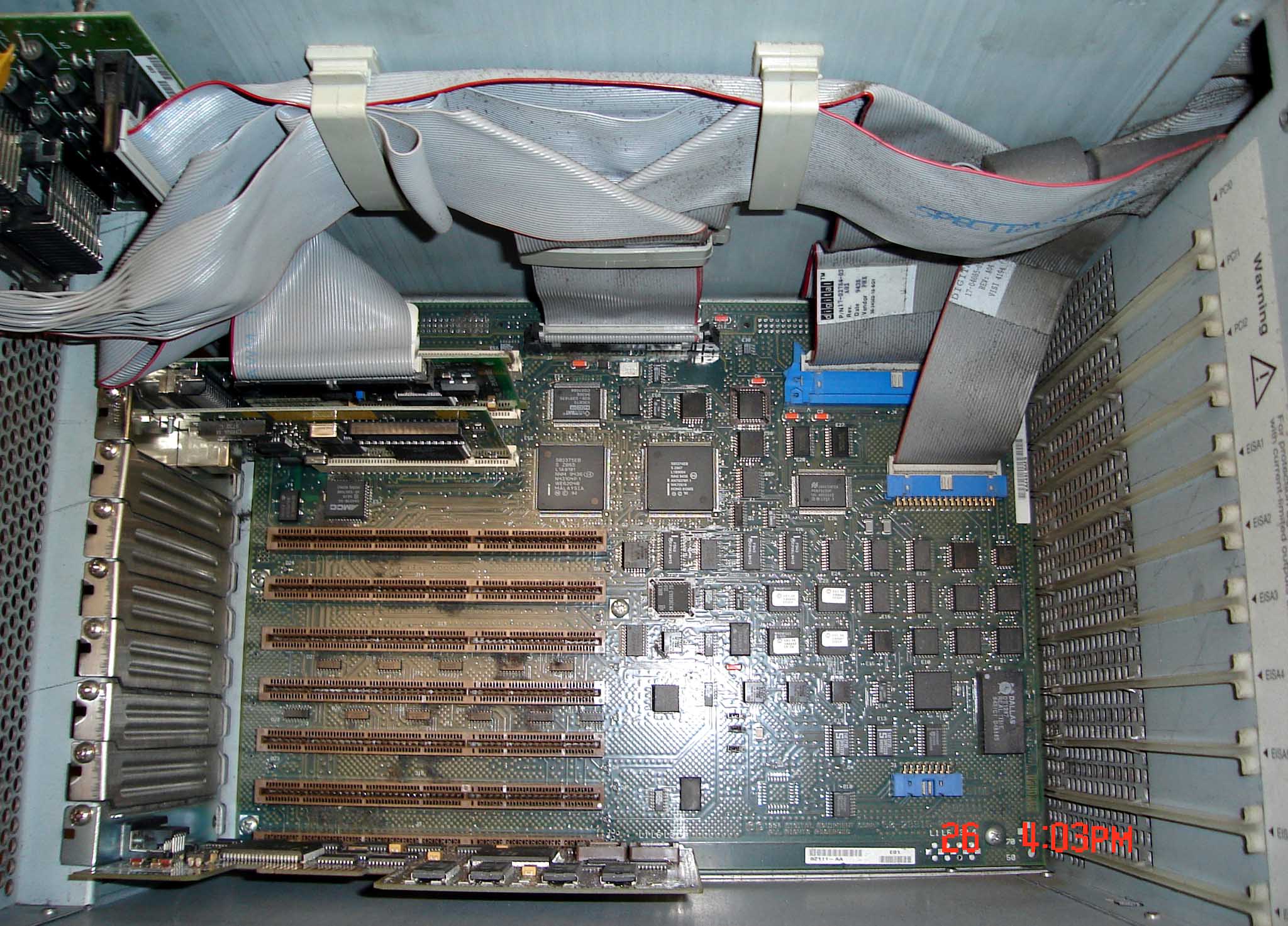

View down into the machine.

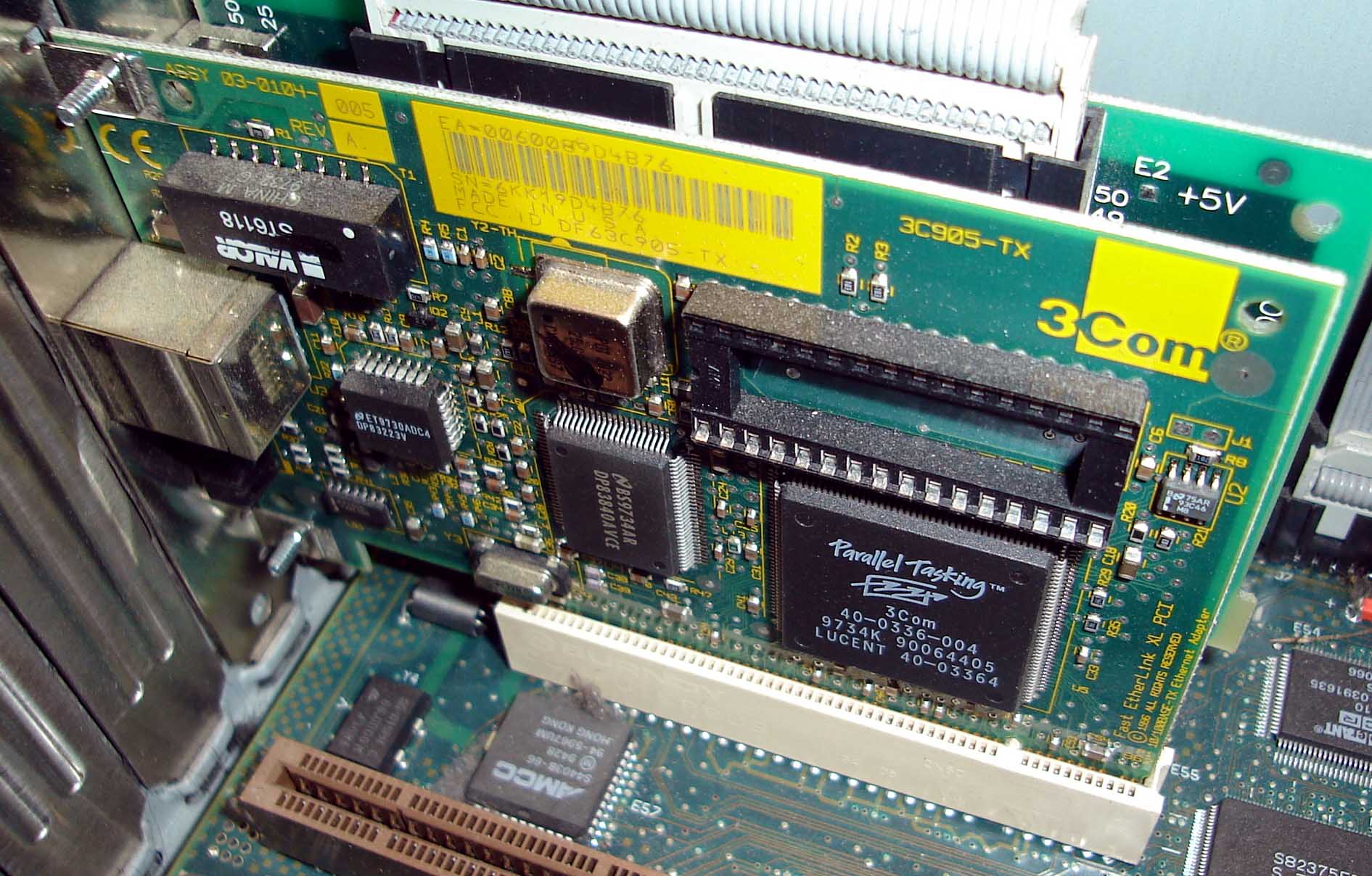

Standard generic PCI NIC demonstrates that the PCI is standard, and the linux driver Just Worked.

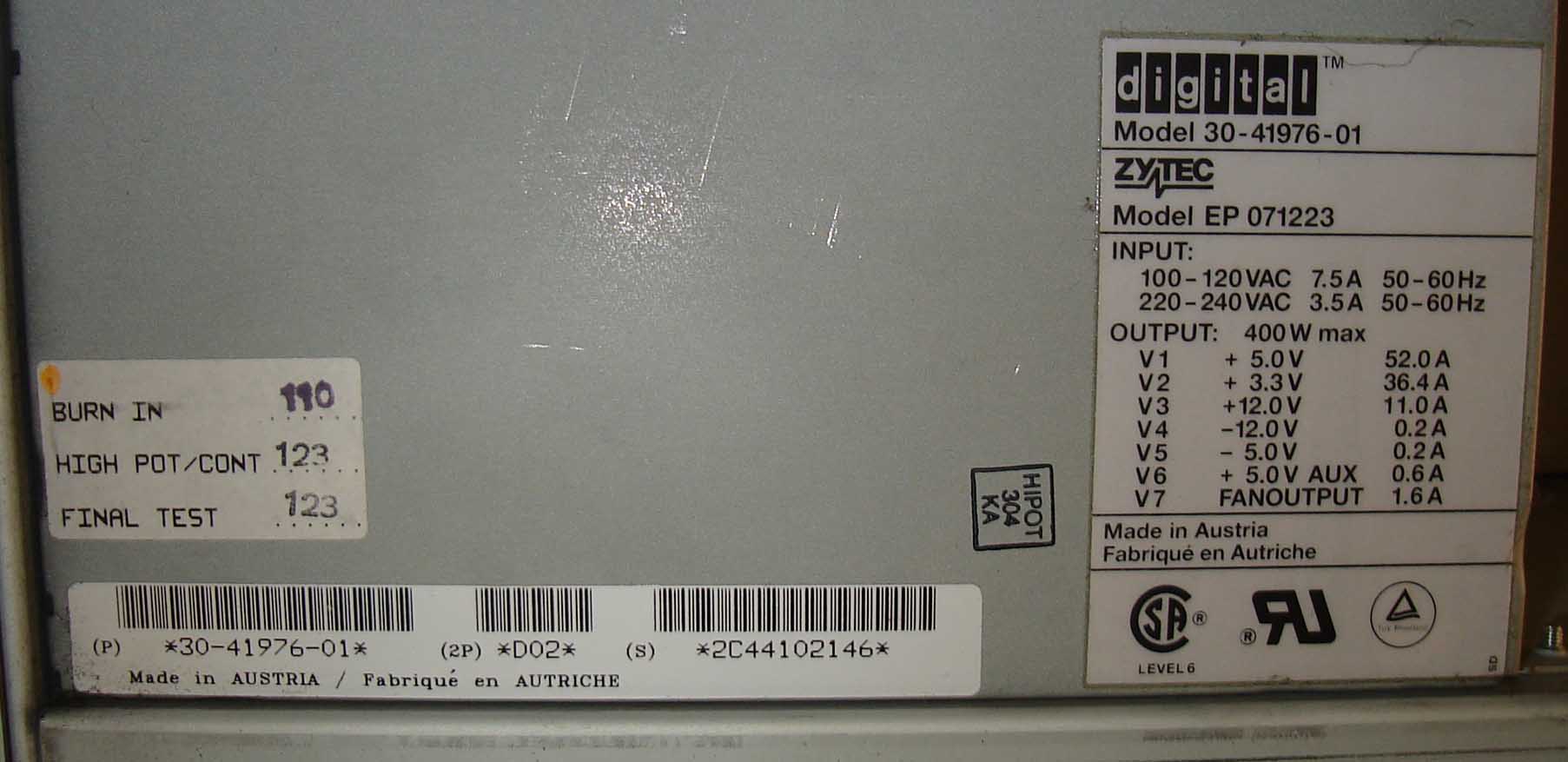

PSU was Made In Austria

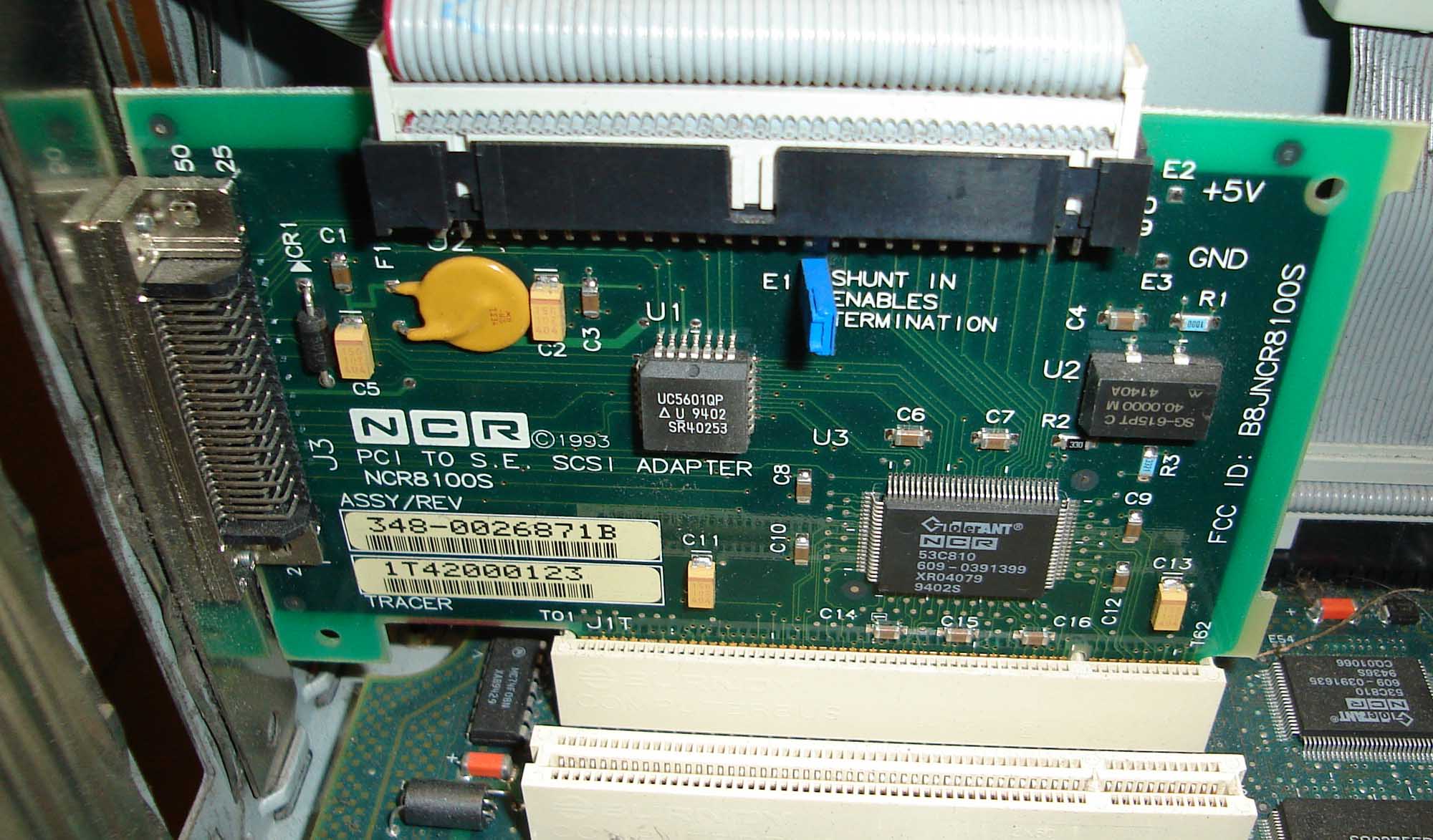

NCR SCSI host adapter. This optional second SCSI controller allows the drives to be connected to two hosts, accelerating disk/host transfers by decreasing bus contention. (buzzword city there!)

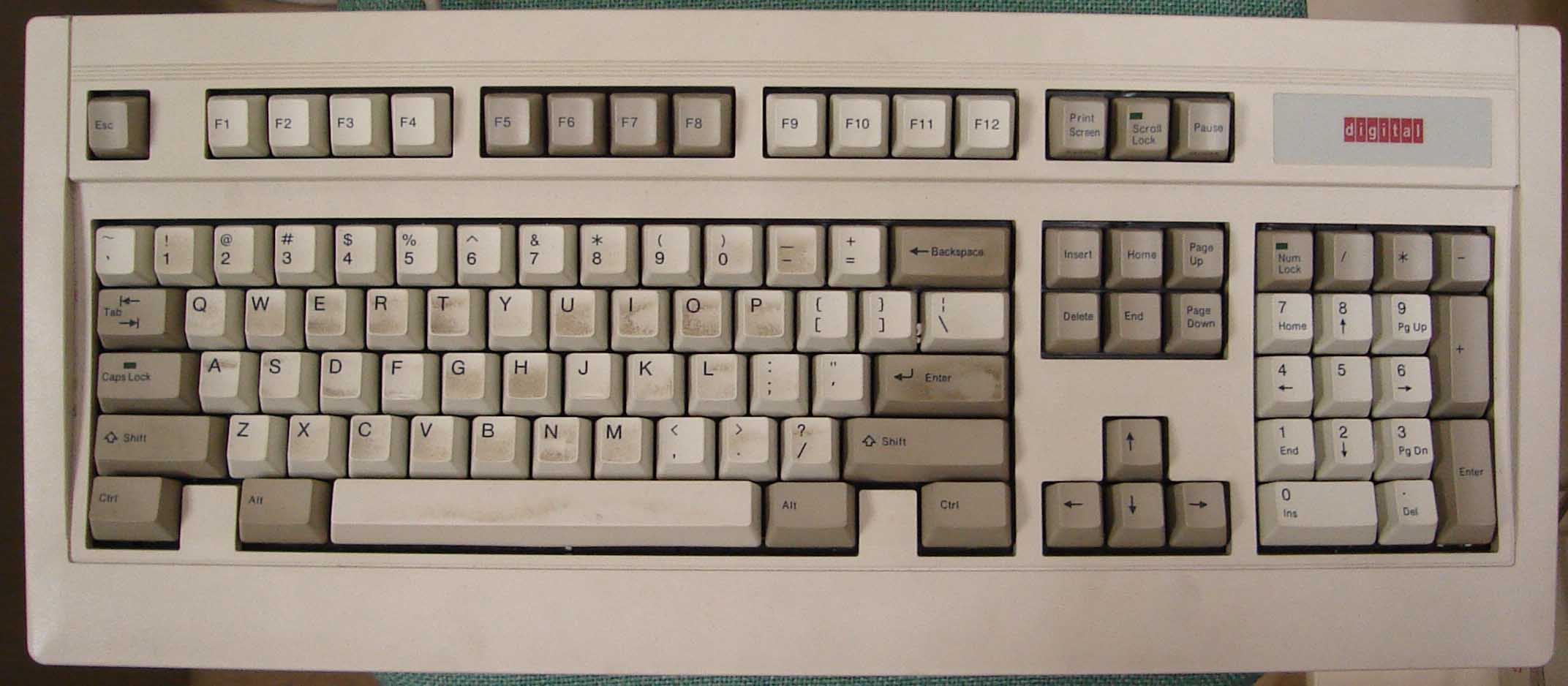

Top

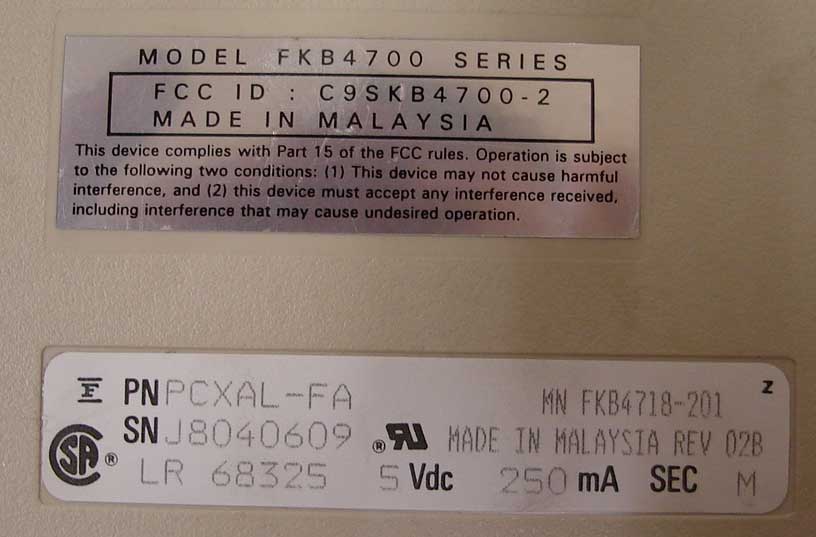

and bottom of an authentic DIGITAL PS/2 keyboard

Specifications

This is the hardware:

CPU: 64 bit Alpha 21064 EV5 at 291 MHz returning 1162 bogoMIPs (one CPU), SPECweb96 rating of 570 (one CPU)
RAM: 512 Mb in 32 x 16 Mb 72 pin simms
SCSI: two on-board NCR controllers based on the NCR53C810 chipset. Work perfectly with ncr53c8xx module.
HDD: 7x2 Gb and one 1Gb SCSI drive, a variety of DEC RZ26, RZ28, DSP3210S, RZ28B
CDROM: DEC RRD43 SCSI cdrom drive - a "laptop" format with the lens in the tray.
Tape: DEC TLZ07 SCSI tape drive. Never used it at all.
FDD: 2.8 Mb drive. Never used it at all.
Weight: 25-30 kilograms estimated.

CPU

cpu			: Alpha
cpu model		: EV5
cpu variation		: 7
cpu revision		: 0
cpu serial number	:
system type		: Sable
system variation	: 0
system revision		: 0
system serial number	:
cycle frequency [Hz]	: 291545189
timer frequency [Hz]	: 1024.00
page size [bytes]	: 8192
phys. address bits	: 40
max. addr. space #	: 127
BogoMIPS		: 1162.24
kernel unaligned acc	: 0 (pc=0,va=0)
user unaligned acc	: 0 (pc=0,va=0)
platform string		: AlphaServer 2000 5/300
cpus detected		: 1

/proc/interrupts

  1:          2           SABLE   keyboard
  8:     272271             RTC  +timer
 33:      12450           SABLE   ncr53c8xx
 35:        115           SABLE   ncr53c8xx
 36:       3237           SABLE   eth0
ERR:          0

More details will be added over time. Any queries - email me from this mailer page

Not Working Yet

These are the niggles I haven't fixed yet... Always work in progress

Strange dmesg errors I periodically get this error message
```
XXX Todo
```
The message seems to appear more often when the machine is under load, but has never caused any problems that I've noticed.

Audio

This is a server and has no audio hardware. However one could add an ISA, EISA or PCI sound card like any normal linux box.

USB

USB does not exist on this machine.

Output of lspci

0000:00:01.0 SCSI storage controller: LSI Logic / Symbios Logic 53c810 (rev 02)
0000:00:02.0 Non-VGA unclassified device: Intel Corp. 82375EB/SB PCI to EISA Bridge (rev 03)
0000:00:07.0 Non-VGA unclassified device: LSI Logic / Symbios Logic 53c810 (rev 01)
0000:00:08.0 Ethernet controller: 3Com Corporation 3c905 100BaseTX [Boomerang]

Output of lsmod

Module                  Size  Used by    Not tainted
nfsd                   96824   8
lockd                  67120   1  [nfsd]
sunrpc                 88552   1  [nfsd lockd]
raid5                  23024   1
xor                     7032   0  [raid5]
md                     63432   1  [raid5]
3c59x                  38624   1
rtc                     7608   0  (autoclean)
sd_mod                 16896  16  (autoclean)
ext3                   83772   0  (autoclean)
jbd                    61256   0  (autoclean) [ext3]
ncr53c8xx              75400   8  (autoclean)
scsi_mod              110772   2  (autoclean) [sd_mod ncr53c8xx]
unix                   22904   4  (autoclean)

/etc/modules

/etc/X11/XF86-Config

This machine does not run X itself, however I run various X applications like xterm and xload to a remote machine.

Output of dmesg

 fffffc0000a30620  sp = fffffc001ffe74f0
T2 machine check: vector=0x660 pc=0xfffffc00008e6190 code=0x202
machine check type: system detected hard error
pc = []  ra = []  ps = 0000    Not tainted
v0 = 0000000000000007  t0 = 00000000000000ff  t1 = 0000000000000000
t2 = 0000000000000002  t3 = 0000000000000000  t4 = fffffc0000a2cd60
t5 = ffffffffffffffff  t6 = fffffc001ffe7310  t7 = fffffc001ffe4000
a0 = 0000000000000000  a1 = 0000000000000000  a2 = fffffc001ffe7518
a3 = fffffc001ffe7510  a4 = fffffc0000000010  a5 = 0000000000000002
t8 = 0000000000000000  t9 = fffffc000096e6a8  t10= 0000000000000000
t11= 0000000000000010  pv = fffffc0000822180  at = 0000000000000000
gp = fffffc0000a30620  sp = fffffc001ffe7520
T2 machine check: vector=0x660 pc=0xfffffc00008e62a8 code=0x202
machine check type: system detected hard error
pc = []  ra = []  ps = 0000    Not tainted
v0 = 0000000000000007  t0 = 0000000000000000  t1 = 0000000000000000
t2 = fffffc0000a2cd61  t3 = 0000000000000000  t4 = fffffc0000a2cd60
t5 = ffffffffffffffff  t6 = fffffc001ffe7310  t7 = fffffc001ffe4000
a0 = 0000000000000000  a1 = 0000000000000000  a2 = fffffc001ffe74e8
a3 = fffffc001ffe74e0  a4 = fffffc0000000010  a5 = 0000000000000002
t8 = 0000000000000000  t9 = fffffc000096e6a8  t10= 0000000000000000
t11= 0000000000000010  pv = fffffc0000822300  at = 0000000000000000
gp = fffffc0000a30620  sp = fffffc001ffe74f0
T2 machine check: vector=0x660 pc=0xfffffc00008e6190 code=0x202
machine check type: system detected hard error
pc = []  ra = []  ps = 0000    Not tainted
v0 = 0000000000000007  t0 = 00000000000000ff  t1 = 0000000000000000
t2 = 0000000000000002  t3 = 0000000000000000  t4 = fffffc0000a2cd60
t5 = ffffffffffffffff  t6 = fffffc001ffe7310  t7 = fffffc001ffe4000
a0 = 0000000000000000  a1 = 0000000000000000  a2 = fffffc001ffe7518
a3 = fffffc001ffe7510  a4 = fffffc0000000010  a5 = 0000000000000002
t8 = 0000000000000000  t9 = fffffc000096e6a8  t10= 0000000000000000
t11= 0000000000000010  pv = fffffc0000822180  at = 0000000000000000
gp = fffffc0000a30620  sp = fffffc001ffe7520
T2 machine check: vector=0x660 pc=0xfffffc00008e62a8 code=0x202
machine check type: system detected hard error
pc = []  ra = []  ps = 0000    Not tainted
v0 = 0000000000000007  t0 = 0000000000000000  t1 = 0000000000000000
t2 = fffffc0000a2cd61  t3 = 0000000000000000  t4 = fffffc0000a2cd60
t5 = ffffffffffffffff  t6 = fffffc001ffe7310  t7 = fffffc001ffe4000
a0 = 0000000000000000  a1 = 0000000000000000  a2 = fffffc001ffe74e8
a3 = fffffc001ffe74e0  a4 = fffffc0000000010  a5 = 0000000000000002
t8 = 0000000000000000  t9 = fffffc000096e6a8  t10= 0000000000000000
t11= 0000000000000010  pv = fffffc0000822300  at = 0000000000000000
gp = fffffc0000a30620  sp = fffffc001ffe74f0
T2 machine check: vector=0x660 pc=0xfffffc00008e6190 code=0x202
machine check type: system detected hard error
pc = []  ra = []  ps = 0000    Not tainted
v0 = 0000000000000007  t0 = 00000000000000ff  t1 = 0000000000000000
t2 = 0000000000000002  t3 = 0000000000000000  t4 = fffffc0000a2cd60
t5 = ffffffffffffffff  t6 = fffffc001ffe7310  t7 = fffffc001ffe4000
a0 = 0000000000000000  a1 = 0000000000000000  a2 = fffffc001ffe7518
a3 = fffffc001ffe7510  a4 = fffffc0000000010  a5 = 0000000000000002
t8 = 0000000000000000  t9 = fffffc000096e6a8  t10= 0000000000000000
t11= 0000000000000010  pv = fffffc0000822180  at = 0000000000000000
gp = fffffc0000a30620  sp = fffffc001ffe7520
T2 machine check: vector=0x660 pc=0xfffffc00008e62a8 code=0x202
machine check type: system detected hard error
pc = []  ra = []  ps = 0000    Not tainted
v0 = 0000000000000007  t0 = 0000000000000000  t1 = 0000000000000000
t2 = fffffc0000a2cd61  t3 = 0000000000000000  t4 = fffffc0000a2cd60
t5 = ffffffffffffffff  t6 = fffffc001ffe7310  t7 = fffffc001ffe4000
a0 = 0000000000000000  a1 = 0000000000000000  a2 = fffffc001ffe74e8
a3 = fffffc001ffe74e0  a4 = fffffc0000000010  a5 = 0000000000000002
t8 = 0000000000000000  t9 = fffffc000096e6a8  t10= 0000000000000000
t11= 0000000000000010  pv = fffffc0000822300  at = 0000000000000000
gp = fffffc0000a30620  sp = fffffc001ffe74f0
T2 machine check: vector=0x660 pc=0xfffffc00008e6190 code=0x202
machine check type: system detected hard error
pc = []  ra = []  ps = 0000    Not tainted
v0 = 0000000000000007  t0 = 00000000000000ff  t1 = 0000000000000000
t2 = 0000000000000002  t3 = 0000000000000000  t4 = fffffc0000a2cd60
t5 = ffffffffffffffff  t6 = fffffc001ffe7310  t7 = fffffc001ffe4000
a0 = 0000000000000000  a1 = 0000000000000000  a2 = fffffc001ffe7518
a3 = fffffc001ffe7510  a4 = fffffc0000000010  a5 = 0000000000000002
t8 = 0000000000000000  t9 = fffffc000096e6a8  t10= 0000000000000000
t11= 0000000000000010  pv = fffffc0000822180  at = 0000000000000000
gp = fffffc0000a30620  sp = fffffc001ffe7520
T2 machine check: vector=0x660 pc=0xfffffc00008e62a8 code=0x202
machine check type: system detected hard error
pc = []  ra = []  ps = 0000    Not tainted
v0 = 0000000000000007  t0 = 0000000000000000  t1 = 0000000000000000
t2 = fffffc0000a2cd61  t3 = 0000000000000000  t4 = fffffc0000a2cd60
t5 = ffffffffffffffff  t6 = fffffc001ffe7310  t7 = fffffc001ffe4000
a0 = 0000000000000000  a1 = 0000000000000000  a2 = fffffc001ffe74e8
a3 = fffffc001ffe74e0  a4 = fffffc0000000010  a5 = 0000000000000002
t8 = 0000000000000000  t9 = fffffc000096e6a8  t10= 0000000000000000
t11= 0000000000000010  pv = fffffc0000822300  at = 0000000000000000
gp = fffffc0000a30620  sp = fffffc001ffe74f0
Linux NET4.0 for Linux 2.4
Based upon Swansea University Computer Society NET3.039
Initializing RT netlink socket
Starting kswapd
VFS: Diskquotas version dquot_6.4.0 initialized
devfs: v1.10 (20020120) Richard Gooch (rgooch@atnf.csiro.au)
devfs: boot_options: 0x0
initialize_kbd: Keyboard reset failed, no ACK
keyboard: Timeout - AT keyboard not present?(ed)
keyboard: Timeout - AT keyboard not present?(f4)
pty: 256 Unix98 ptys configured
Serial driver version 5.05c (2001-07-08) with HUB-6 MANY_PORTS MULTIPORT SHARE_IRQ SERIAL_PCI enabled
ttyS00 at 0x03f8 (irq = 4) is a 16550A
ttyS01 at 0x02f8 (irq = 3) is a 16550A
block: 128 slots per queue, batch=32
RAMDISK driver initialized: 16 RAM disks of 8192K size 1024 blocksize
Cronyx Ltd, Synchronous PPP and CISCO HDLC (c) 1994
Linux port (c) 1998 Building Number Three Ltd & Jan "Yenya" Kasprzak.
NET4: Linux TCP/IP 1.0 for NET4.0
IP Protocols: ICMP, UDP, TCP, IGMP
IP: routing cache hash table of 8192 buckets, 64Kbytes
TCP: Hash tables configured (established 65536 bind 65536)
Linux IP multicast router 0.06 plus PIM-SM
RAMDISK: cramfs filesystem found at block 0
RAMDISK: Loading 3664 blocks [1 disk] into ram disk... |/-\|/-\.....-\|done.
Freeing initrd memory: 3664k freed
VFS: Mounted root (cramfs filesystem).
Freeing unused kernel memory: 328k freed
NET4: Unix domain sockets 1.0/SMP for Linux NET4.0.
SCSI subsystem driver Revision: 1.00
SCSI subsystem driver Revision: 1.00
ncr53c8xx: at PCI bus 0, device 1, function 0
ncr53c8xx: 53c810 detected
ncr53c8xx: at PCI bus 0, device 7, function 0
ncr53c8xx: 53c810 detected
ncr53c810-0: rev 0x2 on pci bus 0 device 1 function 0 irq 33
ncr53c810-0: ID 7, Fast-10, Parity Checking
ncr53c810-1: rev 0x1 on pci bus 0 device 7 function 0 irq 35
ncr53c810-1: ID 7, Fast-10, Parity Checking
scsi0 : ncr53c8xx-3.4.3b-20010512
scsi1 : ncr53c8xx-3.4.3b-20010512
  Vendor: DEC       Model: RZ26     (C) DEC  Rev: 392A
  Type:   Direct-Access                      ANSI SCSI revision: 02
  Vendor: DEC       Model: RZ28     (C) DEC  Rev: D41C
  Type:   Direct-Access                      ANSI SCSI revision: 02
  Vendor: DEC       Model: RZ28     (C) DEC  Rev: X442
  Type:   Direct-Access                      ANSI SCSI revision: 02
  Vendor: DEC       Model: DSP3210S          Rev: T436
  Type:   Direct-Access                      ANSI SCSI revision: 02
  Vendor: DEC       Model: RRD43   (C) DEC   Rev: 1084
  Type:   CD-ROM                             ANSI SCSI revision: 02
  Vendor: DEC       Model: TLZ07     (C)DEC  Rev: 4BQE
  Type:   Sequential-Access                  ANSI SCSI revision: 02
  Vendor: DEC       Model: RZ28B    (C) DEC  Rev: 0006
  Type:   Direct-Access                      ANSI SCSI revision: 02
  Vendor: DEC       Model: DSP3210S          Rev: 436A
  Type:   Direct-Access                      ANSI SCSI revision: 02
  Vendor: DEC       Model: DSP3210S          Rev: T436
  Type:   Direct-Access                      ANSI SCSI revision: 02
  Vendor: DEC       Model: DSP3210S          Rev: T436
  Type:   Direct-Access                      ANSI SCSI revision: 02
Journalled Block Device driver loaded
Attached scsi disk sda at scsi0, channel 0, id 0, lun 0
Attached scsi disk sdb at scsi0, channel 0, id 1, lun 0
Attached scsi disk sdc at scsi0, channel 0, id 2, lun 0
Attached scsi disk sdd at scsi0, channel 0, id 3, lun 0
Attached scsi disk sde at scsi1, channel 0, id 0, lun 0
Attached scsi disk sdf at scsi1, channel 0, id 1, lun 0
Attached scsi disk sdg at scsi1, channel 0, id 2, lun 0
Attached scsi disk sdh at scsi1, channel 0, id 3, lun 0
ncr53c810-0-<0,*>: FAST-5 SCSI 5.0 MB/s (200 ns, offset 8)
SCSI device sda: 2050860 512-byte hdwr sectors (1050 MB)
Partition check:
 /dev/scsi/host0/bus0/target0/lun0: p1 p2 p3
ncr53c810-0-<1,*>: FAST-5 SCSI 5.0 MB/s (200 ns, offset 8)
SCSI device sdb: 4110480 512-byte hdwr sectors (2105 MB)
 /dev/scsi/host0/bus0/target1/lun0: p1
ncr53c810-0-<2,*>: FAST-5 SCSI 5.0 MB/s (200 ns, offset 8)
SCSI device sdc: 4110480 512-byte hdwr sectors (2105 MB)
 /dev/scsi/host0/bus0/target2/lun0: unknown partition table
ncr53c810-0-<3,*>: FAST-5 SCSI 5.0 MB/s (200 ns, offset 8)
SCSI device sdd: 4197520 512-byte hdwr sectors (2149 MB)
 /dev/scsi/host0/bus0/target3/lun0: unknown partition table
ncr53c810-1-<0,*>: FAST-5 SCSI 5.0 MB/s (200 ns, offset 8)
SCSI device sde: 4110480 512-byte hdwr sectors (2105 MB)
 /dev/scsi/host1/bus0/target0/lun0: unknown partition table
ncr53c810-1-<1,*>: FAST-5 SCSI 5.0 MB/s (200 ns, offset 8)
SCSI device sdf: 4197520 512-byte hdwr sectors (2149 MB)
 /dev/scsi/host1/bus0/target1/lun0: unknown partition table
ncr53c810-1-<2,*>: FAST-5 SCSI 5.0 MB/s (200 ns, offset 8)
SCSI device sdg: 4197520 512-byte hdwr sectors (2149 MB)
 /dev/scsi/host1/bus0/target2/lun0: unknown partition table
ncr53c810-1-<3,*>: FAST-5 SCSI 5.0 MB/s (200 ns, offset 8)
sdh: Spinning up disk................ready
SCSI device sdh: 4197520 512-byte hdwr sectors (2149 MB)
 /dev/scsi/host1/bus0/target3/lun0: unknown partition table
ext3: No journal on filesystem on sd(8,3)
Adding Swap: 52256k swap-space (priority -1)
rtc: SRM (post-2000) epoch (2000) detected
Real Time Clock Driver v1.10e
3c59x: Donald Becker and others. www.scyld.com/network/vortex.html
00:08.0: 3Com PCI 3c905 Boomerang 100baseTx at 0x9800. Vers LK1.1.16
md: md driver 0.90.0 MAX_MD_DEVS=256, MD_SB_DISKS=27
raid5: measuring checksumming speed
   8regs     :   655.360 MB/sec
   32regs    :  1114.112 MB/sec
   alpha     :  1204.224 MB/sec
   alpha prefetch:  1048.576 MB/sec
raid5: using function: alpha (1204.224 MB/sec)
md: raid5 personality registered as nr 4
invalidate: busy buffer
invalidate: busy buffer
invalidate: busy buffer
invalidate: busy buffer
invalidate: busy buffer
invalidate: busy buffer
invalidate: busy buffer
invalidate: busy buffer
 [events: 00000010]
md: bind
 [events: 00000010]
md: bind
 [events: 00000010]
md: bind
 [events: 00000010]
md: bind
 [events: 00000010]
md: bind
 [events: 0000000d]
md: bind
 [events: 00000010]
md: bind
md: scsi/host0/bus0/target1/lun0/disc's event counter: 00000010
md: scsi/host1/bus0/target3/lun0/disc's event counter: 0000000d
md: scsi/host1/bus0/target2/lun0/disc's event counter: 00000010
md: scsi/host1/bus0/target1/lun0/disc's event counter: 00000010
md: scsi/host1/bus0/target0/lun0/disc's event counter: 00000010
md: scsi/host0/bus0/target3/lun0/disc's event counter: 00000010
md: scsi/host0/bus0/target2/lun0/disc's event counter: 00000010
md: superblock update time inconsistency -- using the most recent one
md: freshest: scsi/host0/bus0/target1/lun0/disc
md: kicking non-fresh scsi/host1/bus0/target3/lun0/disc from array!
md: unbind
md: export_rdev(scsi/host1/bus0/target3/lun0/disc)
md0: max total readahead window set to 1200k
md0: 5 data-disks, max readahead per data-disk: 240k
raid5: device scsi/host0/bus0/target1/lun0/disc operational as raid disk 0
raid5: device scsi/host1/bus0/target2/lun0/disc operational as raid disk 5
raid5: device scsi/host1/bus0/target1/lun0/disc operational as raid disk 4
raid5: device scsi/host1/bus0/target0/lun0/disc operational as raid disk 3
raid5: device scsi/host0/bus0/target3/lun0/disc operational as raid disk 2
raid5: device scsi/host0/bus0/target2/lun0/disc operational as raid disk 1
raid5: allocated 12828kB for md0
raid5: raid level 5 set md0 active with 6 out of 6 devices, algorithm 0
RAID5 conf printout:
 --- rd:6 wd:6 fd:0
 disk 0, s:0, o:1, n:0 rd:0 us:1 dev:scsi/host0/bus0/target1/lun0/disc
 disk 1, s:0, o:1, n:1 rd:1 us:1 dev:scsi/host0/bus0/target2/lun0/disc
 disk 2, s:0, o:1, n:2 rd:2 us:1 dev:scsi/host0/bus0/target3/lun0/disc
 disk 3, s:0, o:1, n:3 rd:3 us:1 dev:scsi/host1/bus0/target0/lun0/disc
 disk 4, s:0, o:1, n:4 rd:4 us:1 dev:scsi/host1/bus0/target1/lun0/disc
 disk 5, s:0, o:1, n:5 rd:5 us:1 dev:scsi/host1/bus0/target2/lun0/disc
RAID5 conf printout:
 --- rd:6 wd:6 fd:0
 disk 0, s:0, o:1, n:0 rd:0 us:1 dev:scsi/host0/bus0/target1/lun0/disc
 disk 1, s:0, o:1, n:1 rd:1 us:1 dev:scsi/host0/bus0/target2/lun0/disc
 disk 2, s:0, o:1, n:2 rd:2 us:1 dev:scsi/host0/bus0/target3/lun0/disc
 disk 3, s:0, o:1, n:3 rd:3 us:1 dev:scsi/host1/bus0/target0/lun0/disc
 disk 4, s:0, o:1, n:4 rd:4 us:1 dev:scsi/host1/bus0/target1/lun0/disc
 disk 5, s:0, o:1, n:5 rd:5 us:1 dev:scsi/host1/bus0/target2/lun0/disc
md: updating md0 RAID superblock on device
md: scsi/host0/bus0/target1/lun0/disc [events: 00000011]<6>(write) scsi/host0/bus0/target1/lun0/disc's sb offset: 2055168
md: scsi/host1/bus0/target2/lun0/disc [events: 00000011]<6>(write) scsi/host1/bus0/target2/lun0/disc's sb offset: 2098688
md: scsi/host1/bus0/target1/lun0/disc [events: 00000011]<6>(write) scsi/host1/bus0/target1/lun0/disc's sb offset: 2098688
md: scsi/host1/bus0/target0/lun0/disc [events: 00000011]<6>(write) scsi/host1/bus0/target0/lun0/disc's sb offset: 2055168
md: scsi/host0/bus0/target3/lun0/disc [events: 00000011]<6>(write) scsi/host0/bus0/target3/lun0/disc's sb offset: 2098688
md: scsi/host0/bus0/target2/lun0/disc [events: 00000011]<6>(write) scsi/host0/bus0/target2/lun0/disc's sb offset: 2055168
raid5: switching cache buffer size, 8192 --> 1024

Other Interesting Stuff

Windows NT ?

I heard this unit can run Microsoft Windows NT? You heard correctly. However the various Unix options and the Windows option are mutually exclusive, and depend on totally different boot loader.

Display

That wee green display shows a user-programmable string while machine is running. It is most useful at boot time because it displays all sorts of stuff about the POST tests. Here's a recording of the machine booting.

29 Mb MPG

The first message is from elsewhere in the boot process.

Part Numbers related to this machine

Some of these are international part numbers, some will be localised. If you know more email me!

Part #	Description
