Laptop Specifications and Linux this page is almost here now

The Toshiba Foomatic Laptop and Linux

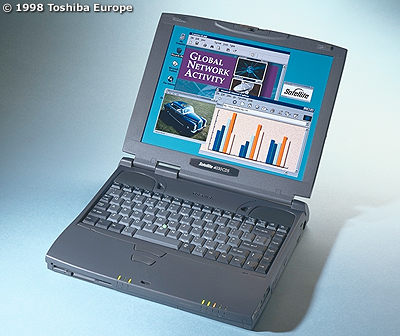

Images

Specifications

This is the hardware:

Processor Intel® Celeron™ processor, 300 MHz int./66 MHz ext., 1.6 volt core using Voltage Reduction Technology, 32 KB cache on chip, PCI architecture	Memory Standard 64 MB SDRAM, expandable to 192 MB, 128 KB 2nd level cache Hard disk 4.32 billion byte capacity (4.0 GB) Internal video modes 4030CDS: 800 x 600 x 16.7 million colours 4030CDT: 1,024 x 768 x 65,536 colours	Display 4030CDS : 13.0” DSTN colour screen 4030CDT : 13.3” TFT colour screen Battery Removable lithium-ion battery, 3–3.5 hrs battery life Size and Weight CDS: 309 x 259 x 42.2 mm, CDT: 309 x 259 x 41.7 mm, 3.2 kg (7 lbs)
Further Product Specifications
Diskette drive 3.5" 1.44 MB/720 KB, simultaneous internal use with the CD-ROM drive CD-ROM drive 24-speed (max), 12 cm (5.25") and 8 cm (3.5") disks, Data transfer: 3,600 KB/sec, Average random access time: 130 ms Graphics adapter Trident Cyber 9525 SVGA, Trident Cyber 9525 SVGA, BitBIT 64-bit graphics accelerator, 3D acceleration, 2.5 MB Video RAM External video modes 640 x 480 x 16.7 mill. colours 800 x 600 x 16.7 mill. colours 1024 x 768 x 65,536 colours 1280 x 1024 x 256 colours Up to 85 Hz refresh rate non interlaced	Keyboard 86 keys with integrated MousePoint, 12 function keys, 8 dedicated cursor keys, inlaid numeric keypad, 8 Hot Keys, 2 Windows keys, Euro key Sound system Toshiba Bass Enhanced Sound System, Sound Blaster Pro compatible, MIDI & WAVE support, 3D Wide mode, FM & Wavetable synthesis, built-in stereo speakers BIOS DMI 2.0, APM 1.2, PnP 1.0, DPMS, VESA 2.0, DDC2B Interfaces Infrared port (FIR), serial, parallel, PS/2 mouse / keyboard, line-in, RGB port, USB port, headphone, external microphone Expansion 2 x PC Card Type II or 1 x PC Card Type III, CardBus, memory expansion	Communication Integrated V.90 data & fax modem (56 K data, 14.4 K fax) Power supply Autosensing 100–240 V AC adaptor for world-wide usage Bundled software Windows® 95 or Windows® 98 selectable installation, other Microsoft operating systems upon request, Toshiba utilities and drivers, all pre-installed on the hard disk Special features Toshiba Power Extensions, Toshiba Hibernation utility, Hardware Setup, TSETUP, Password Security, Secure Sleep, 1 year International Warranty Options Carrying case, extra battery packs, battery charger, 32/64/128 MB memory modules, Port Replicator, Card Station III Spacer, Card Station III (via Spacer)
Download Technical Specifications (59 KB)



	Legal Stuff

More details will be added over time. Any queries - email me from this mailer page

Not Working Yet

These are the niggles I haven't fixed yet... Always work in progress

Nothing

Audio

Audio is working - the controller uses the 12345 device, which is supported by the foo module, in kernel 2.6 and later.

The speakers are poor and really only suited to bingbong noises... use headphones for any real work.

USB

USB is working fine.

/etc/X11/XF86-Config

Never managed to save this file. I believe the driver is called "chips"

Output of dmesg

Never managed to save this output.

Other Interesting Stuff

Part Numbers related to this machine

Some of these are international part numbers, some will be localised. If you know more email me!

Part #	Description
PA1247EA	Base Laptop (NZ model)
PA2039U	16MB RAM Module
PA2043U	32MB RAM Module
PA2044U	64MB RAM Module
BC7515	Nylon carrying case	With side pocket, handle and shoulder strap
PA2451U	Secondary battery pack (w/AC adaptor)
PA2609U	Select-Bay 2GB Second Hard Disk Drive
PA2611U	FDD Attachment Case	Allows floppy drive to be used outside laptop.
PA2710U	Desk Station V Plus	This is the bigger of the two expanders. Provides a CRT stand, and some quantity of normal PCI/ISA slots for plugging desktop components into.
PA2713U	Enhanced Port Replicator II	This port replicator is intended to sit on your desk, permenantly plugged into your extermal monitor/peripherals. This cannot be powered by the laptop's batteries. Provides two more double-height Cardbus PCMCIA slots Microphone socket Speaker socket Line In socket Line Out socket Volume knob on the right side Separate PS/2 keyboard and mouse 9 pin Serial port Joystick port Power-in socket (uses AC adapter) VGA Video Parallel Kensington security attachment point Unknown button under release lever. Mine is powered off the standard wall adapter - it doesn't have a built-in adapter which makes it somewhat useless.
PA2656U	Extra user swappable floppy disk drive for Desk Station V Plus
PA3049U-1ACA	Universal AC adaptor
