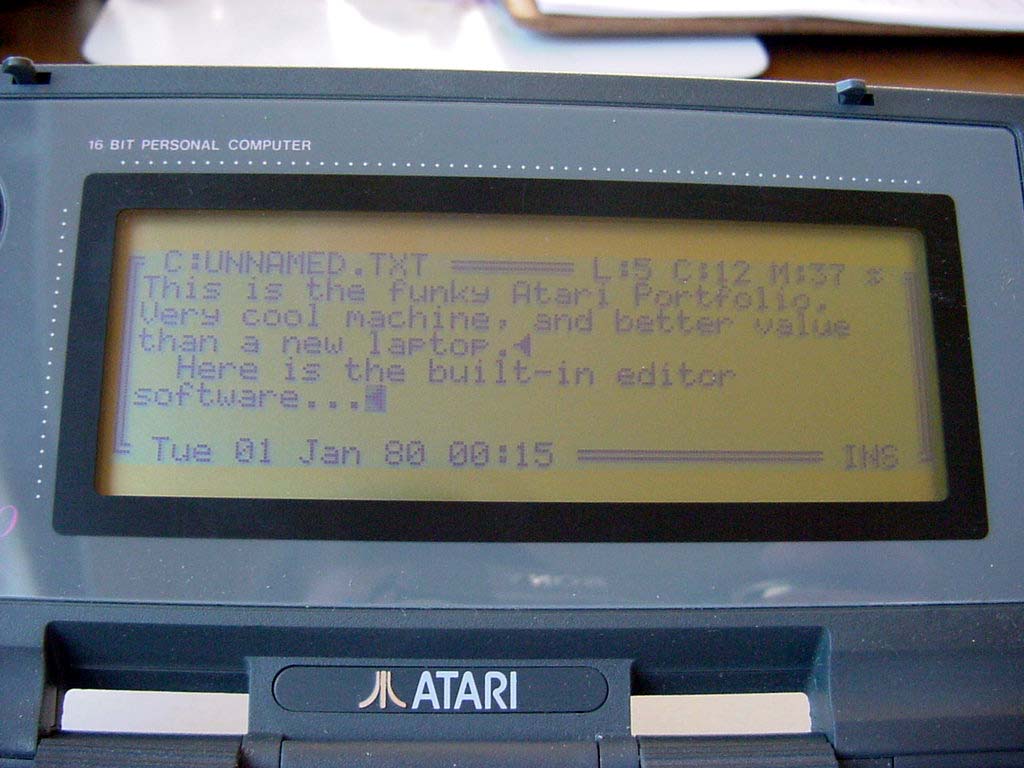

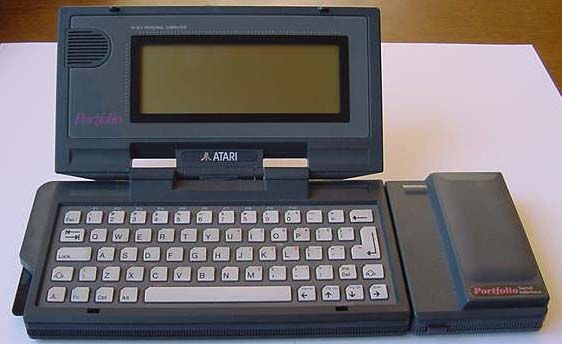

Portfolio, open with serial module attached.
- Palmtop PC
- 80186 16 bit CPU
- Comes with serial port module (rrp $199 at DSE) and slave software on card.

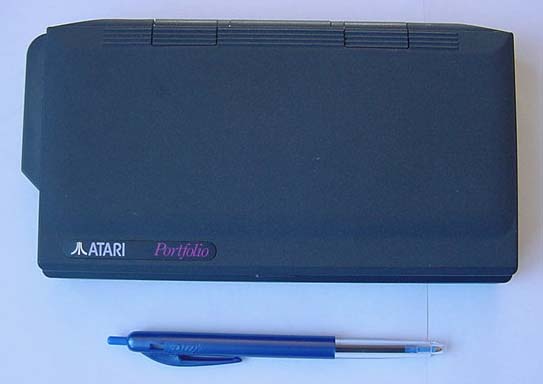

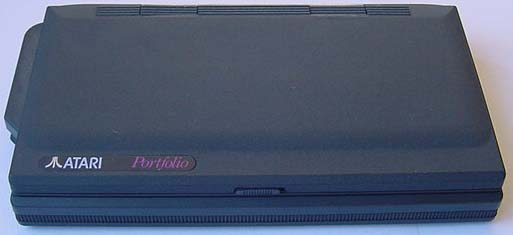

Closed, top view.

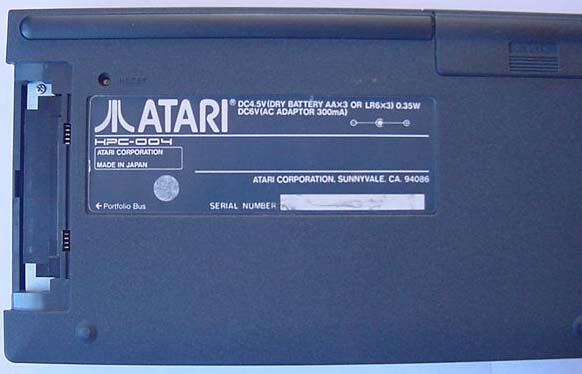

Underside, shows label and expansion bus connector.

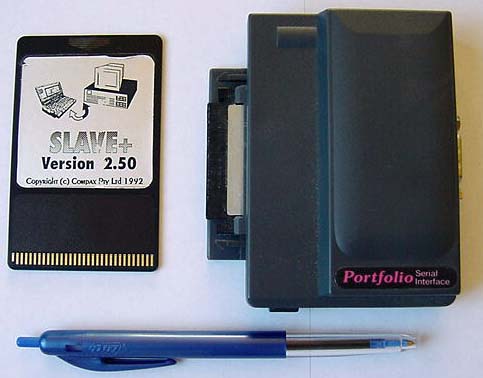

Slave card and Serial port.

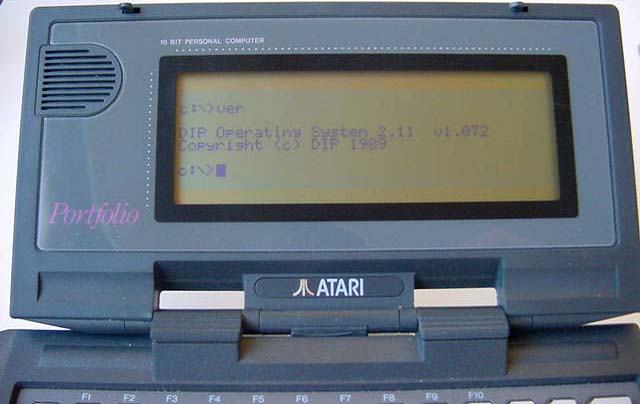

DIP DOS ver command.

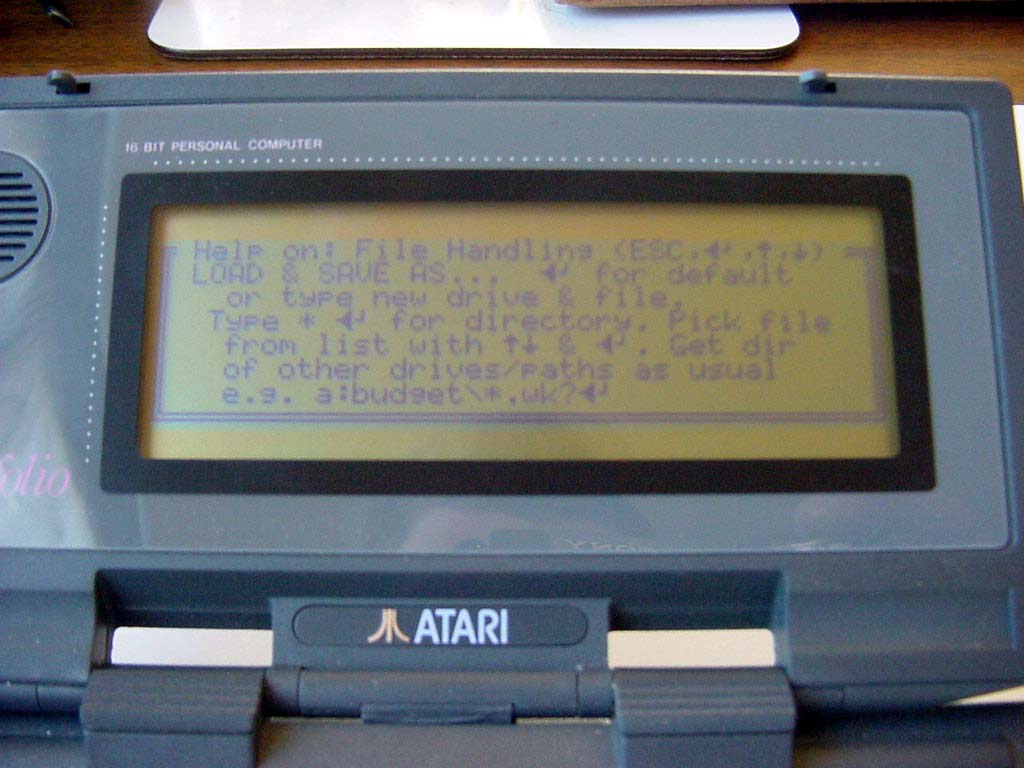

Online help screens for built-in apps.

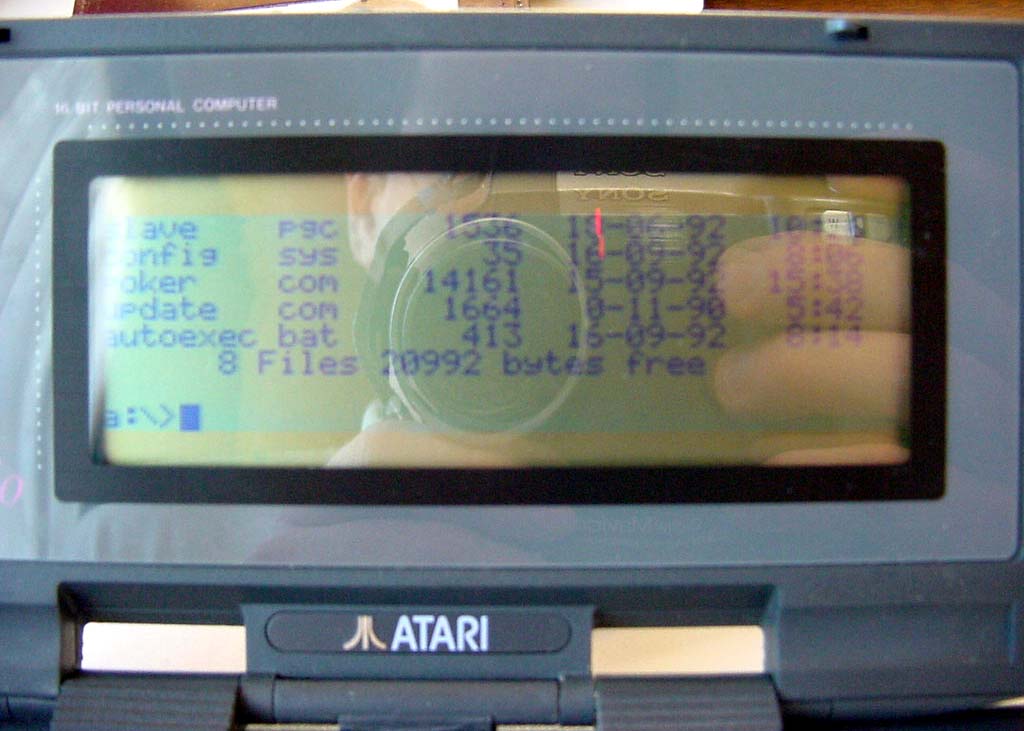

dir a: (scuse the reflections!).
- Processor 80C88, 4.9152 MHz Clock Speed
- Memory 128KB internal RAM Includes internal configurable RAM disk (C:)
256KB ROM contains applications software
- Dimensions Length 200 mm, Width 100 mm, Depth 28 mm
- Weighs less than 1lb (454g) excluding batteries
- Display High contrast Liquid Crystal Display (LCD)
240 x 64 graphics screen or 40 characters X 8 lines
Monochrome (MDA) emulation
- Keyboard 63 keys, QWERTY layout. Hot-key access to built-in applications
- Memory card slot with optional PCMCIA adaptor
- 60-pin expansion BUS for optional peripherals
- Built-in speaker with tone dialling (DTMF)
- Power 3 x AA size removable alkaline batteries. Memory preserved during battery changes. Optional AC mains adaptor
- System DIP DOS 2.11 (MS-DOS & PC BIOS compatible) Software runs from ROM, leaving RAM free
- Text Processor Comprehensive, easy to use text and memo editor with wordwrap, line and column count, search & replace. Handles printer and word processor control codes.
- Address And Phone Book. Card index with phone list and detailed records. Automatic tone dialling of telephone numbers. Entries are sorted and can be selected by category
- Spreadsheet Accommodates spreadsheet of 255 rows x 127 cols. Reads and writes Lotus 1-2-3 files (.WKS). Built-in 1-2-3 functions eg @SUM, @IF, @NPV
- Time Manager Comprehensive calendar and diary to the year 2049 Wake-up alarms even when the Pocket PC is off. Entries can be repeated each day/week/month/year.
