Dell P1110 21" Trinitron CRT Monitor

Technical Information

I recently acquired a bunch of these monitors. Click thumbnails for bigger images.

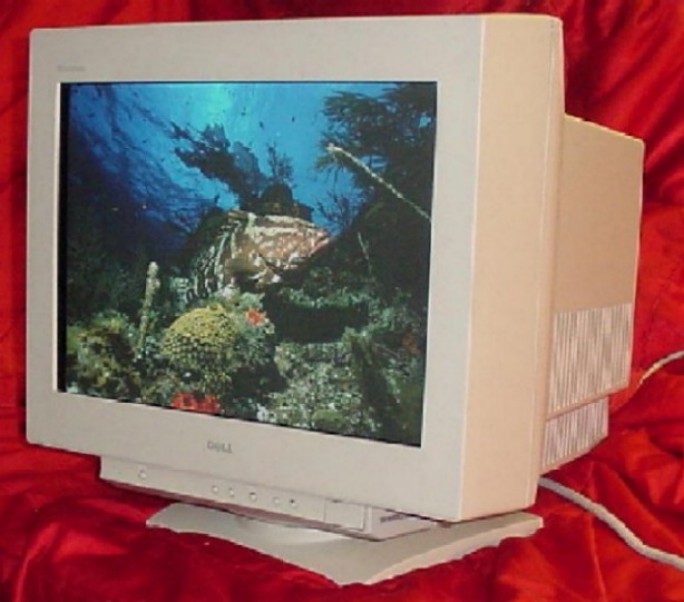

Promo Photographs

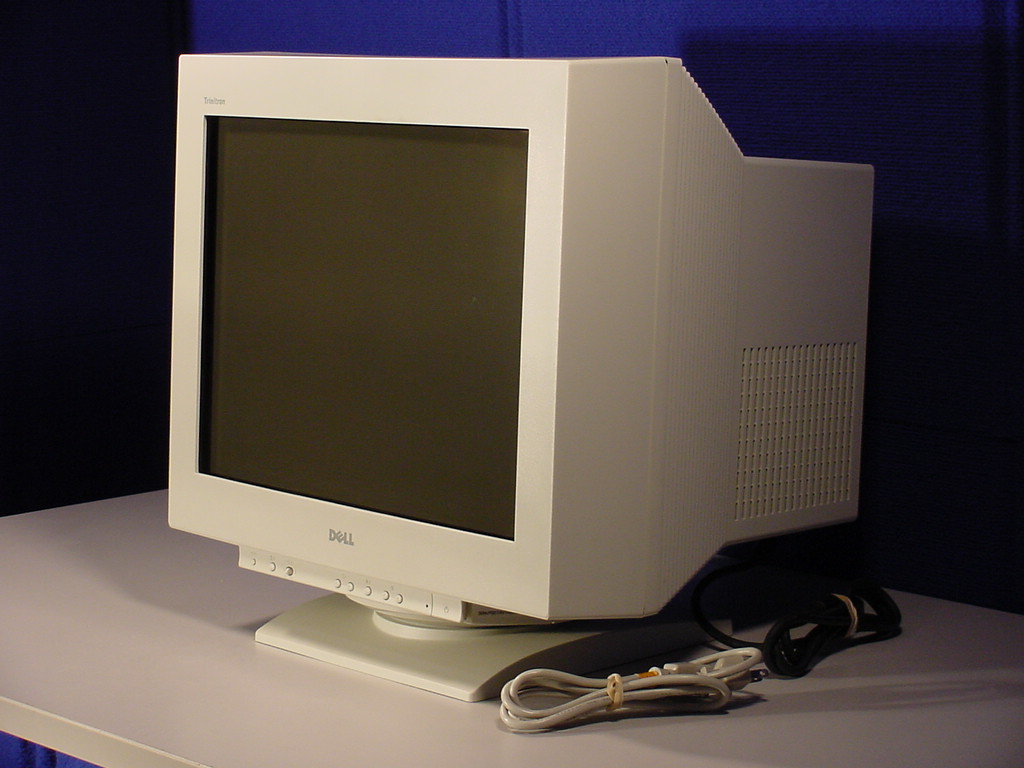

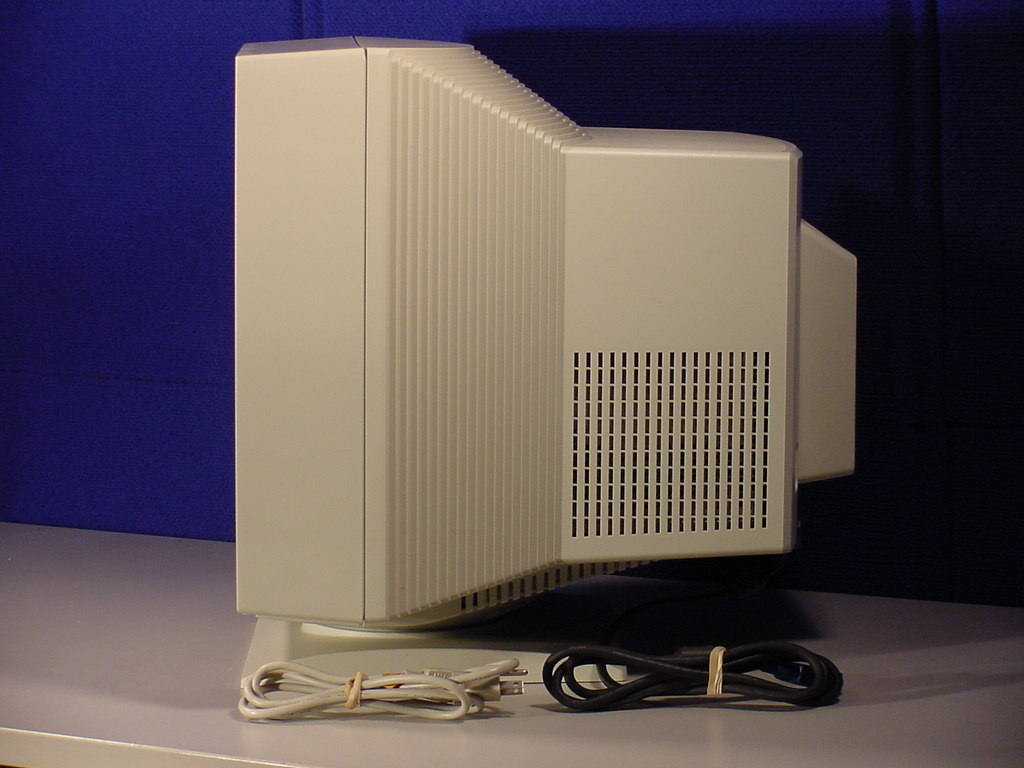

Real Photographs

P1110

Features

Please note this somewhat lyrical language is from Dell

Big, Flat, & Beautiful! The best 21" monitor available!

Dell UltraScan P1110 Computer Monitor

The P1110 uses flat Trinitron display technology. What does this mean to you? It means your brain doesn't have to compensate for the curvature your eyes would see if they were looking at a conventional display or CRT. A flat display is ideal for intensive applications such as CAD/CAM, web, and 3-D design programs that require highly accurate renditions. With a flat display, vertical and horizontal straight lines will appear straight when viewed at any angle.

Having a P1110 monitor also means that the colors you see on-screen are so pure and accurate, that on a properly calibrated display, graphics and pre-press professionals can soft-proof files and go directly to print. This gives you more time to be creative or to adjust the minute details that elevate your work from that of your peers.

The P1110 also reduces glare caused by ambient light because of the flat display. Instead of creating glare spot the way a curved CRT does, glare is harmlessly reflected away from your eyes.

End of Dell bit

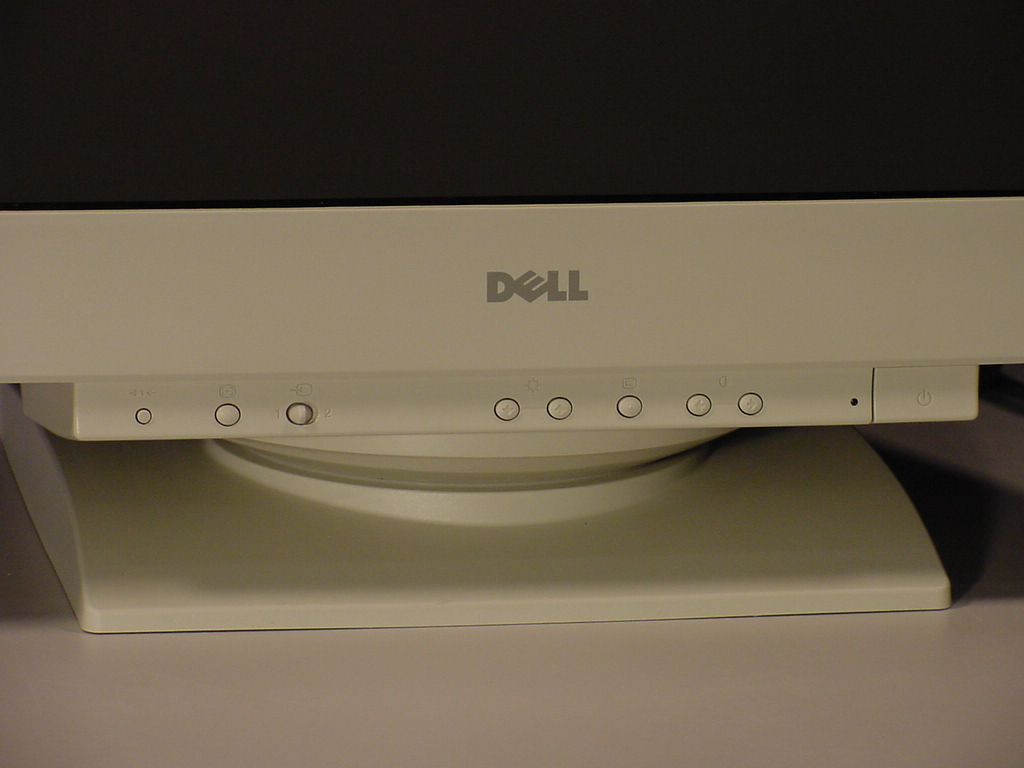

One fantastic little feature of this monitor is there are two VGA inputs on the rear. By clicking a small switch on the front, the user connects to the other input which could be any of:

  • Another computer
  • A second output on the same computer
  • A laptop's VGA out connector
  • The 15 pin VGA connector on those cheap DVD players.

    Specifications

    Large viewable screen perfect for CAD/CAM/CAE, document imaging, graphic,or power users.
    Virtually flat screen that reduces ambient light reflection.

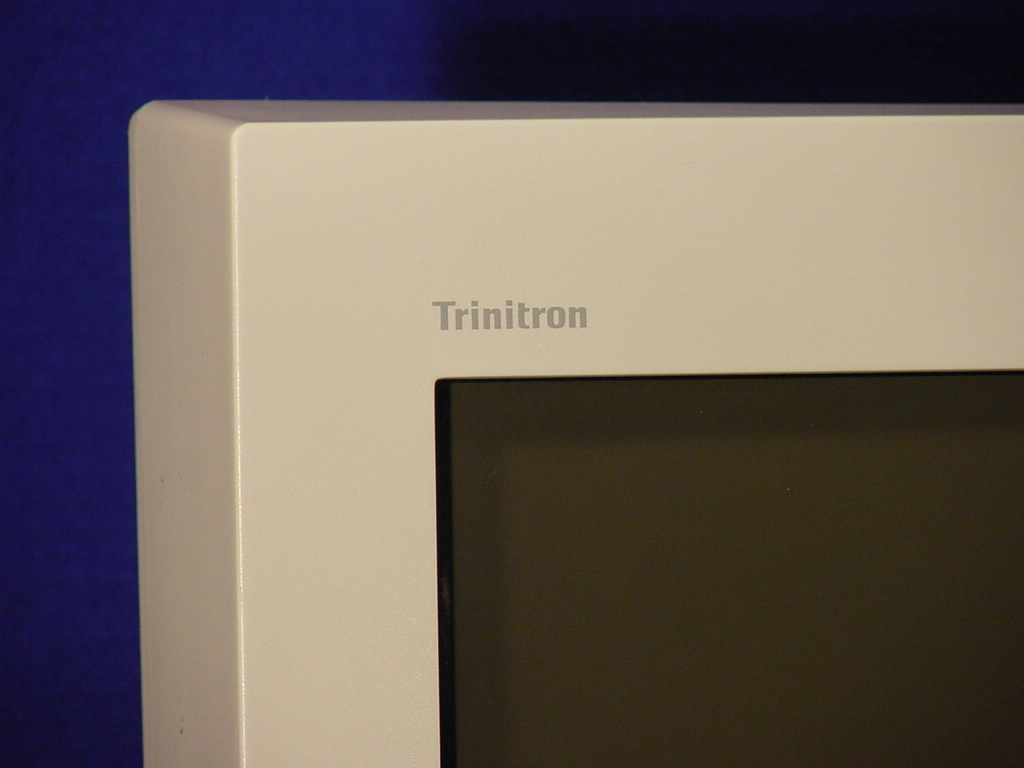

    High quality and performance incorporating Trinitron flat screen technology.
    Screen dimensions: 21 inches (19.8-inch viewable image size)
    Preset display area - Horizontal: 388 3.5 mm (15.3 inches 0.14 inches) Vertical: 291 3.5 mm (11.4 inches 0.14 inches)
    Aperture Gril Pitch: 0.24 mm
    Deflection angle: 90
    Phosphor type: P22
    Faceplate coating: AR coating
    Video input signals analog, 0.7 Vpp, positive at 75 ohm
    Synchronization input signals separate horizontal and vertical; and composite TTL level, positive or negative
    Sync on Green at 0.3 Vp-p

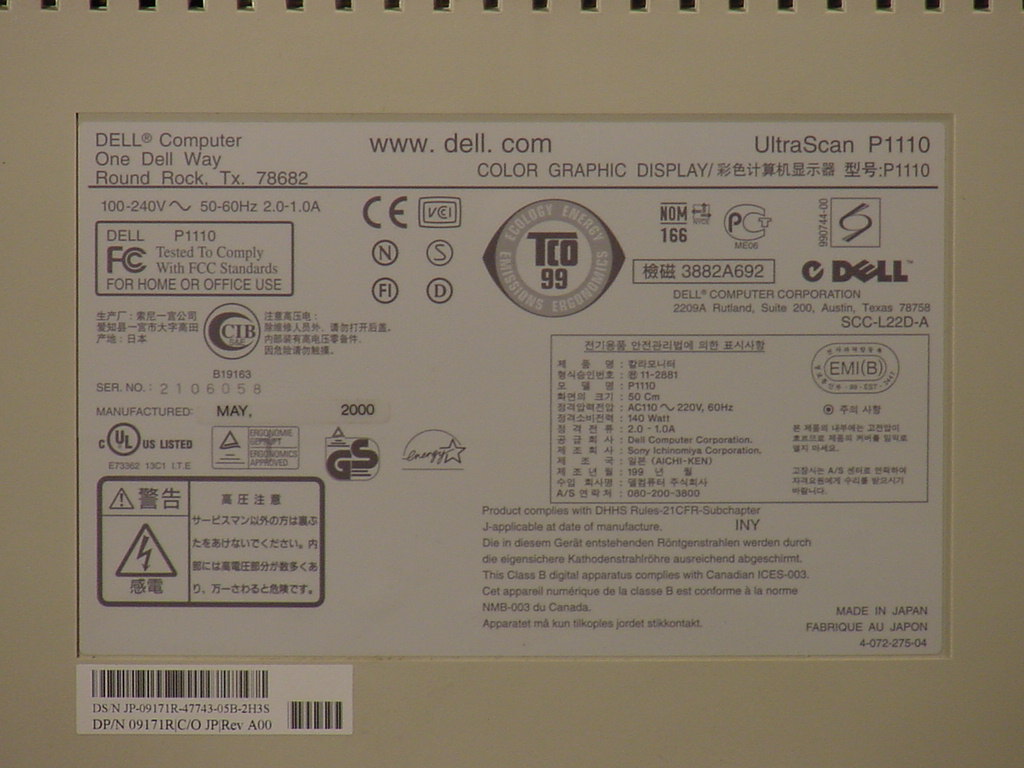

    AC input voltage / frequency / current 120/240V 50/60 Hz 2.0 A/1.0A
    Inrush current at 120 V 50 A
    Inrush current at 240 V 80 A
    Horizontal scan range: 30 kHz to 121 kHz (automatic)
    Vertical scan range: 48 Hz to 160 Hz (automatic)
    Optimal preset resolution: 1280 x 1024 at 85 Hz
    Highest preset resolution: 1600 x 1200 at 85 Hz
    Highest addressable resolution*: 1800 x 1440 at 75 Hz
    If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If input from keyboard, mouse or other input devices is detected, the monitor will automatically "wake up".
    Connector type 15-pin D-sub miniature - Two Input connectors.
    Signal cable type Detachable cable
    Height: 491 mm (19.3 inches)
    Width: 498 mm (19.6 inches)
    Depth: 478 mm (18.8 inches)
